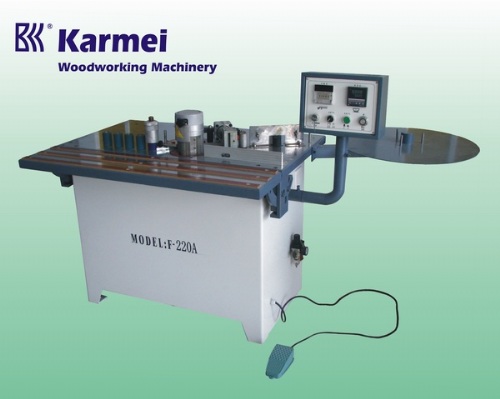

Karmei Edge Banding Machine / Simens Transducer
Model: F-220A
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / Other Multi-Purpose Woodworking Machine
Characteristics
Multi-functional, can adapt to a variety of materials and sizes to provide a straight edge inside the arc, outside the arc, with curves and with circles.
Suitable for all types of edge band, such as melamine paper band, wooden band and plastic (PVC or ABS) self-adhesive edge bands.
Speed control by Simens Transducer
Specifications
F-220A Manual multi - functional edge bander
Mini radius of banding : 20mm
Heating power : 1.8kw
Sending power : 0.37kw
Air pressure : ≥4kg/㎡
Speed adjustment : Simens transducer
Feeding speed : 1 -- 18m/min
Counting form : Counter DHC-J-A1PR
Machine size : 1180 X 830 X 1150mm
Measurement : 1480 X 950 X 1220mm
Net weight : 290kg
Gross weight : 350kg
Application range : melamine, veneer and plastic banding Thickness of banding : Upon 0.3mm
Width of banding : 10-50mm
Shape of workpiece : Straight, Irregular
