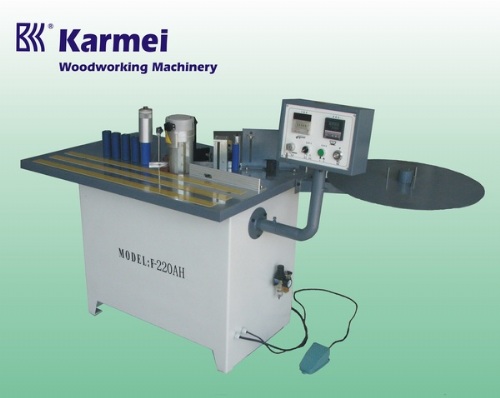

Karmei Edge Banding Machine
Model: F-220AH
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / Other Multi-Purpose Woodworking Machine
Characteristics
F-22OAH Manual curved & straight edge bander / width edge banding
all machines combines with automatic cutter according to banding board requested.
Specifications
Mini radius of banding : 20mm
Heating power : 1.8kw
Sending power : 0.37kw
Air pressure : ≥4kg/㎡
Speed adjustment : Simens transducer
Feeding speed : 1--18m/min
Counting form : Counter DHC-J-A1PR
Machine size : 1180 X 830 X 1150mm
Measurement : 1480 X 950 X 1220mm
Net weight : 250kg
Gross weight : 310kg
Application range : melamine, and plastic banding
Thickness of banding : Upon 0.3mm
Width of banding : 10-100mm
Shape of workpiece : Straight, irregular
