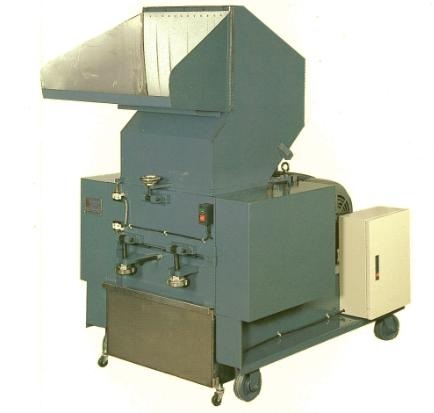

Granulator
Model: K Series of Powerful and Noise Proof Granulator
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Crushers
Characteristics
High safety
Micro-switch built-in for safety
Overload voltage/current protection
Special body and blade constructure
Easier to clean materials and replace blades
Big crushing capacity
Power saving
Noise proof
Movable
Specifications
| Item | Mode/Unit | K-260/S | K-210/S | K-212/S | K-315/S | K-218/S | K-220/S | K-830/S |
| into size (L*W) |
mm | 240*170 | 260*220 | 300*250 | 380*275 | 460*275 | 508*340 | 760*390 |
| motor size | HP | 2~3 | 5~7.5 | 7.5~10 | 10~15 | 15~20 | 20~30 | 30~40 |
| crushing capacity per hour | kg | 80~100 | 100~200 | 130~300 | 160~400 | 300~600 | 400~800 | 600~900 |
| net weight | kg | 400 | 420 | 600 | 750 | 950 | 1200 | 1700 |
| machine size (L*W*H) |
mm | 920* 500* 1300 |
1000* 570* 1420 |
1320* 780* 1430 |
1450* 880* 1540 |
1480* 960* 1580 |
1520* 1030* 1670 |
1600* 1430* 2160 |
| rotating blades | pcs | 3 | 3 | 3 | 6 | 6 | 6 | 9 |
| fixed blades | pcs | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| rotor diameter | mm | 225 | 225 | 254 | 280 | 300 | 343 | 380 |
| rotor speed (approx.) |
r.p.m | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| screen diam. | mm | 6~8 | 6~8 | 8~10 | 8~10 | 8~10 | 10~12 | 10~12 |
Specifications subject to change without notice.
【remark】
- The most crushing capacity is decided by crushed material and screen diameter.
- The noise of crushing is depend on crushed material and motor size.
- Screen diameter can be selected by customer's demand.
- We can modify according to customer's special request.
Options
- Water-cooling system added on bearing (suggest using on motor at 20HP or above)
- In power magnet: Can adsorb iron filings or impurity while inputting materials.
- Power cable
Application range
ABS,PP, PVC, PE and all kinds of plastic materials, resin, soft wire, feed, herb
