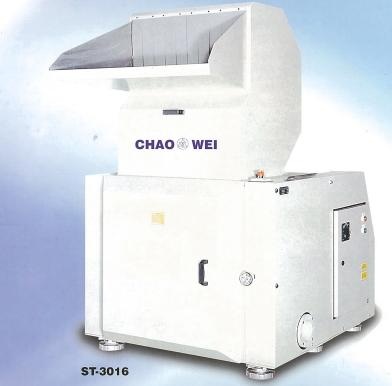

Granulator
Model: ST series
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Crushers
Characteristics
Large feed aperture for ease of feeding and cleaning
Not leap particles out
Heavy duty blades with scissor cutting angle
All blades are fully adjustable
Reduced noise and dust levels
Motor overload protection
High performance perforated screen in fitted toward the operator side
Main power isolated
Safety devices built to comply with CE safety requirements, suitable for Europe country
Automatic cyclone suction unit can be collocated
Specifications
| Item | Mode/Unit | ST-1009 | ST-1210 | ST-1511 | ST-1812 | ST-2014 | ST-3016 |
| Feed opening (L*W) |
mm | 260*220 | 300*250 | 380*275 | 460*300 | 510*340 | 760*390 |
| motor size | HP | 5 | 10 | 15 | 20 | 30 | 50 |
| crushing capacity (approx.)(remark1) |
kg/hr | 100~200 | 150~300 | 200~400 | 300~600 | 400~800 | 600~900 |
| weight (approx.) |
kg | 420 | 650 | 810 | 960 | 1320 | 1800 |
| machine size (L*W*H)(approx.) |
mm | 1030* 635* 1520 |
1270* 805* 1660 |
1280* 900* 1760 |
1340* 970* 1780 |
1500* 1060* 1870 |
1750* 1340* 1950 |
| length of rotating blade | mm | 253*1 | 302*1 | 190*2 | 228*2 | 257*2 | 257*3 |
| length of fixed blade | mm | 260*1 | 318*1 | 390*1 | 466*1 | 520*1 | 390*2 |
| rotating blades | pcs | 3 | 3 | 6 | 6 | 6 | 9 |
| fixed blades | pcs | 2 | 2 | 2 | 2 | 2 | 4 |
| rotor diameter | mm | 225 | 254 | 280 | 300 | 343 | 380 |
| rotor speed (approx.) |
r.p.m | 600 | 550 | 550 | 550 | 550 | 550 |
| strandard screen diam. (remark2) |
mm | 8 | 8 | 8 | 10 | 10 | 12 |
| suction port diam. | Inch | 3 | 3 | 4 | 4 | 5 | 5 |
| voltage (phase) |
V | 380~460 | |||||
Specifications subject to change without notice.
【remark】
- Based on 60HZ operations.
- Available sizes are 6,8,9,10,11,12, or 16mm which can be selected by customer's demand.
- The most crushing capacity is decided by crushed material and screen diameter.
- The noise of crushing is depend on crushed material and motor size.
- We can modify according to customer's special request.
Options
- Water-cooling system added on bearing (suggest using on motor at 20HP or above)
- In power magnet: Can adsorb iron filings or impurity while inputting materials.
- Automatic cyclone suction unit: To provide convenience of operation.
- Power cable
Application range
ABS,PP, PVC, PE and all kinds of plastic materials, resin, soft wire, feed, herb
Specification of Automatic cyclone suction unit
| Cyclone motor size | Volume of cyclone tank (Liter) |
Hose diamether (mm) |
| 3HP | 100 | 76 |
| 5HP | 125 | 102 |
| 7.5HP | 151 | 127 |
| 10HP | 151 | 127 |
Specifications subject to change without notice.
