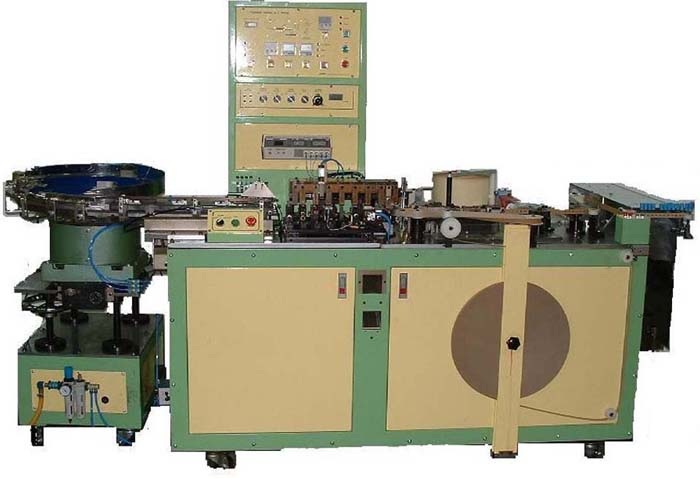

TPC-90+FP250 High Speed Automatic Forming & Taping Machine(Vertical Feeder)
Model: TPC-90+FP250
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
This machine is designed to forming & taping process for metal oxide resistor with full automation & high efficiency, all finished products can meet international specification requirement.
1. Modern feature and easy operation.
2 The motor drive rapidly & low noise with brake set and adopt high speed electronic non-step speed changer, moreover, the operation speed is able to adjust directly by control plate.
3. Three stage control design (auto feeding, speed reducing and stopping) to insure product. 4. Dran-out design mold which replace and hight adjust easily.
5. High precision function includes auto correction, testing, cutting and defective products explusion.
6. New patent design for auto folding & collection and pack quickly.
7. Lead wire auto rectification and special specification forming available
8. European program controller system which can indicate break-down position and have defective product count-down function.
9. Special design of forming & tapping machine available.
Specifications
|
AC220V 3∅, 50/60 Hz, 1.6KW |
|
Air 4~5 kg/cm^2 |
|
40~80 pcs/min |
|
W3000mm x D780mm xH1620MM |
|
1000KG |
