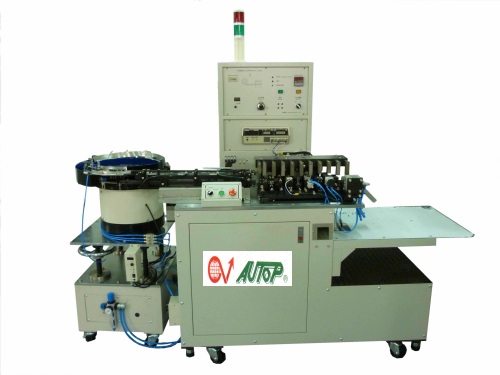

High Speed Automatic Forming M/C
Model: CF 90 / CF 200
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
Features:
1. Parts Feeder (Vibrator) �� Lead Straightening �� Forming �� Testing �� NG Rejection �� Lead Cutting �� 2nd Forming �� Counting �� Collection.
2. Two Dimensional Forming, i.e. Left-Right and Front-Rear.
3. Fully automatic, High productivity, High qualityC
4. Cam Driven Mechanism, Stable and Durable.
5. Inverter Controlled Speed Adjustment.
6. PLC Control System.
7. Easy Operation and Maintenance.
8. Tester Interface Ready, Tester Optional.,
Specifications
Applicable Components
CF 200
Medium/Small Capacitors Φ4~Φ10
Medium/Small Film Capacitors
Medium/Small Passive Components
Lead Length >= 2.5 mm
CF90
Large Size Capacitors Φ13~Φ18
Large Size Film Capacitors
Large Size Passive Components
Lead Length >= 4.0 mm
CF200
Dimensions 1400L*875W*1370H(mm)
Power AC220V, 3Φ, 50/60 Hz
Air Air 4~5 Kg / cm2
Speed 150 ~ 200 pcs / min
CF90
Dimensions 1690L*875W*1370H(mm)
Power AC380V, 3Φ, 50/60 Hz
Air Air 4~5 Kg / cm2
Speed 40 ~ 90 pcs / min
