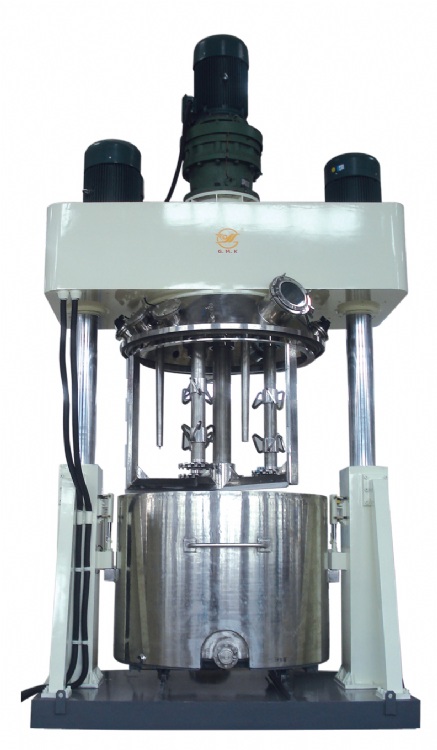

QLF-600L DISPERSING POWER MIXER
Model: QLF-600L
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Mixers
Characteristics
QLF dispersing power mixer is a kind of high-efficiency multifunctional mixer already proved by practice. It can meet the needs of users to quickly change working requirements during operation, and can custom-make various kinds of mixer to meet different viscosity materials on clients’ requirements. Working capacity range from 5L to 3500L, power is designed according to viscosity of materials. It is widely used in silicone sealant, adhesive, cosmetics, chemical products, battery, foodstuff, pharmacy and plastic industries, etc. Dispersing power mixer has 3-4 different stirrers inside of vessel, including one low-speed stirrer revolving around vessel axis, and the other 2-3 high-speed stirrers rotating around its own axis at different high speeds to achieve complicated movement of strong shearing and kneading for materials inside of vessel.
Specifications
1 |
Vacuum Degree |
-0.098Mpa |
2 |
Structure |
Gantry type |
3 |
Rotation Speed |
Revolution: 0∼22r/min. Rotation: 0∼970r/min. |
4 |
Slow Shaft |
|
5 |
High-speed shaft |
1. Two butterfly stirrers on the dispersion disk 2. The height of upper stirrers can be adjusted |
6 |
Lifting mode of vessel cover |
Hydraulic |
7 |
Lifting height of vessel cover |
1000mm |
8 |
Mode of Temperature Measurement |
Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement. |
9 |
Location of vessel |
Adopt guiding device for pushing and location way of arc plate |
10 |
Lock of Vessel |
Mechanical manual lock |
10 |
Total Power(KW) |
66.5kw |
11 |
Power Supply |
AC,3 phase, 380v/50hz |
12 |
Dimension |
L2140 x W1100 x H3440(mm) |
13 |
Weight(kg) |
About 7500 kgs |
