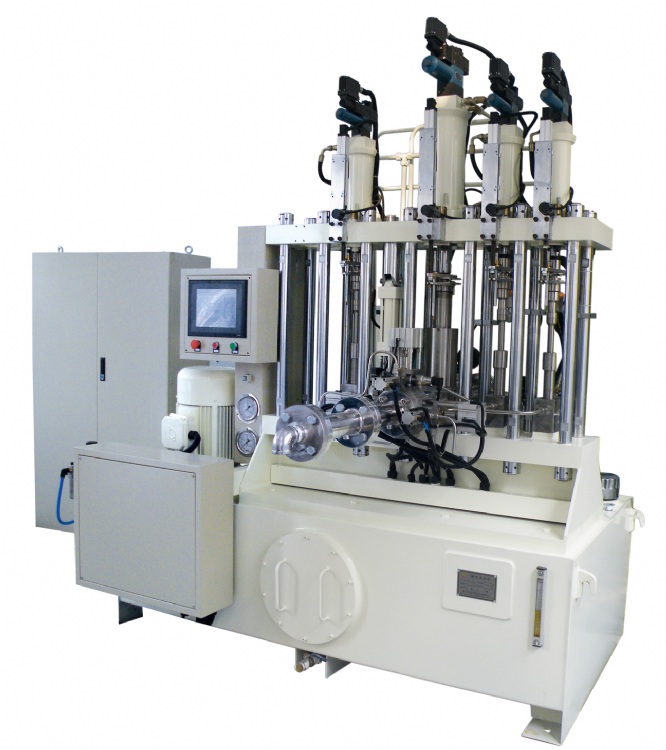

JTH-4K Static mixer
Model: JTH-4K
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Mixers
Characteristics
Based on the progressive requirement of sealant production process and the strong R&D capacity, we develop the static mixer which is one of the key equipment from single machine production to continuous production ,matching with our twin-screw mixer to be the kneading ,mixing, color matching and adding system.
Static mixer is a kind of new-type high viscosity material mixing equipment, particularly suiting continuous production of silicone sealant. It is comprised of static mixer, hydraulic system, dosing and metering system, valve, integrated electric control system, pneumatic control system and frame, etc., among which the static mixer and hydraulic servo synchronous system are the core of the entire equipment as well as the guarantee of quality stable, even and reliable product.
Based on the characteristics of sealant, the company utilizes its own strong R&D force to develop new-type static mixer with independent property rights, which are particularly suitable for technological requirements of sealant industry, capable of realizing auto weighting, auto charging, continuous auto production of multi-constituent materials, and thus guaranteeing consistent product quality and greatly reducing waste in production. This machine is of world-advanced technology, rivaling foreign equipment of the same kind, with very high cost-effectiveness.
Specifications
- Multi formula (10 formula) was set by the Man-machine interface. The PLC, Shifting sensor and the rotating encoder would adjust the stroke of the oil tank of the discharge machine which could realise adjusting the quantify automatically; the main interface would dynamically display the material’s weight of each metering vessel
- Automatic on-line cross linker and catalyst adding
- On-line adding of various kinds of additives
- On-line adding of color paste
- Continuous automatic production
- The material discharging speed of each vessel is adjusted by the proportion valve, ensuring the discharging synchronism of each vessel in the process of production, once the formula was altered, the discharging speed would be adjusted automatically, realizing the synchronism again at the fastest speed.
- Real time pressure testing is made at the position of material feeding and material discharging. With the over press protective and machine stop function, it can prevent the unexpected accidence.
- No-clean and no-residue, capable of greatly reducing production waste
- Capable of realizing zero-inventory
- Capable of greatly saving labor cost
- Connecting energy storing machine and packing machine could be available at the feeding inlet of base material and product discharging outlet ,realizing the continuous production.
