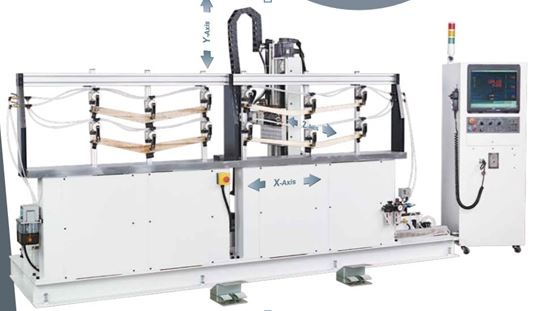

CNC MORTISER
Model: HP-250
Category: Woodworking Machinery Industry / Milling Machinery / Automatic Double End Tenoner
Characteristics
Equipped with advanced PC-based control.
Clamping 4 pieces of wood at a time.
18,000rpm high speed spindle.
X,Y,Z - axis are all driven by servo motors.
PC-based Control
Powerful Functions
Easy To Learn And Operate
The operator only needs to input angle and mortise sizes without need of program editing.
15" colorful LCD touch -screen.
Windows CE operation system.
Equipped with mouse and MPG handwheel.
USB input function.
Internet transmission function.
18,000RPM Direct-drive,High-speed Spindle.
The HP-250 employs an Italy - imported high precision spindle,which is directly coupled to
thefrequency variable motor.
Maximum spindle speed can reach 18,000rpm for effectively upgrading machining efficiency and finish of mortise.
This machine is designed with two clamping mechanisms,allowing for clamping 4 pieces of woodat a time.
When performing mortising on one setof wood, the operator may clamp or unclamp wood on another clamping mechanism for saving time.
The use of swing clamps provides fast clamp and unclamp of workpieces without interference.
The automatic lubricator provides automatic lubricator to ball screws and linear motion guides on three axes.
Specifications
Cutting Capacity 2800mm x 85mm x100mm
