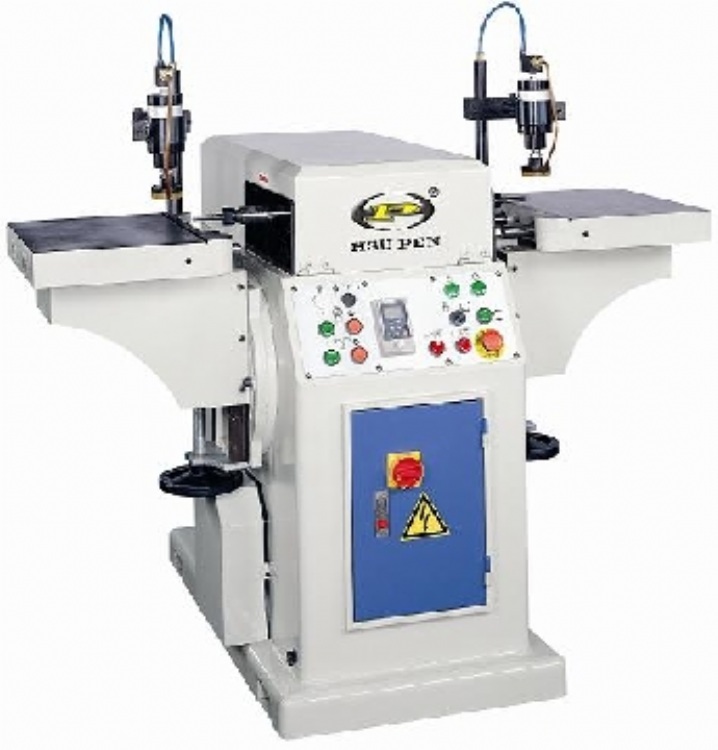

Oscillation Mortiser
Model: MOM-130
Category: Woodworking Machinery Industry / Milling Machinery / Hand-Operating Double End Tenoner
Characteristics
Two table built in the front and back of the machine provides high efficiency mortising operations.
Air clamps provides convenient workpiece handling.
Mortising width is adjustable.
Mortising depth is adjustable
Table feed forward speed is variable.
Mortising depth is accurately
Table height is adjustable
Mortising bit oscillating speed is variable
Specifications
Max. mortise width:130 m/m
Max. mortise depth:50 m/m
Max. clamping thickness:100 m/m
Table area:42 cm x 31 cm
Table tilts:0°_35°
Table stroke:60 mm
Table elevation distance:75 m/m
Spindle speed:9000 R.P.M.
Cutter oscillation speed:0_340 strokes/min
Controller:P.L.C
Spindle motor:2 HP
Cutter oscillation motor:1/2 HP
Working air pressure:5 kgf/cm²
Machine dimensions (L x W x H):136 x 100 x 141 cm
Packing dimensions (L x W x H):148 x 112 x 154 cm
Net weight:470 kg
Gross weight:572 kg
