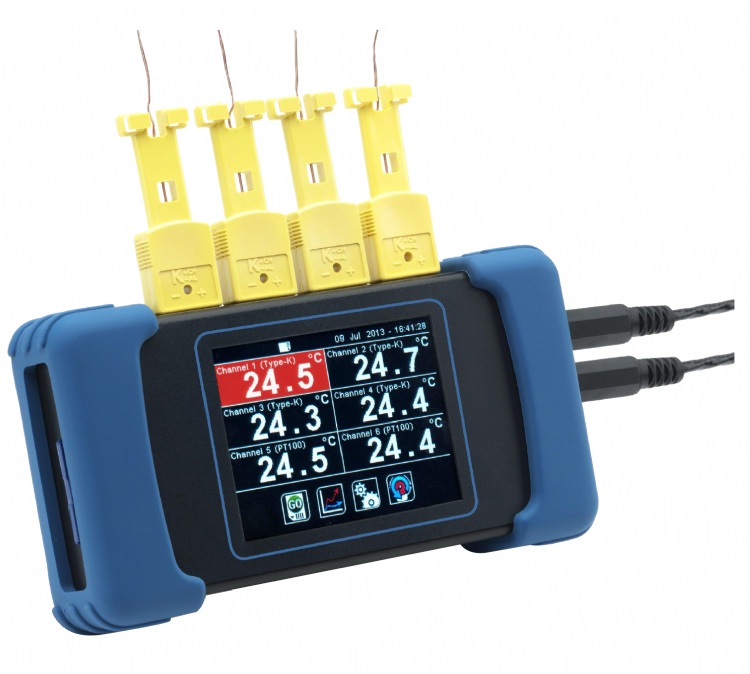

Portable 6-channel Temperature Data Logger with Touch Screen
Model: TDL-R/D-6C
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ OEM service
¡½ 2.83¡¨ TFT touch screen display with backlight to ensure clear observation in dark environment
¡½ High/low alarm can be set on each channel
¡½ Switchable temperature unit: ¢J/¢K
¡½ The temperature of any two channels can be compared by showing temperature change diagram
¡½ Adjustable display mode: to show all 6 channel at the same time or to show one by one
¡½ Max., min., and avg. value display
¡½ Adjustable record interval: 1 to 86400 secs
¡½ Start/stop data record manually or schedule the start/stop time of data record
¡½ Support 32GB SD or SDHC card to save at least one year record
¡½ 5VDC power adapter (standard), rechargeable NiMH battery (option)
¡½ The data log format can be saved as .csv
Specifications
Main Specifications
¡¿Dimension
136 (W) x 71 (H) x 32 (D) mm
¡¿Input
Thermocouple inputs x4
3-wire Pt100 inputs x2 with
3-pole stereo TRS 3.5mm
connectors
¡¿Screen display
2.83”(72mm) resistive touch
TFT, 320 x 240 pixels
with backlight
¡¿Configurable parameters
Temp. unit, alarms, signal
process, date and time, data
logging, power options, graph
channels, sample period,
number of samples
¡¿Display mode
Measured temperature / cold
junction temperature / alarm
events
¡¿Maximum SD card capacity
32 GB SD or SDHC
¡¿Temperature range
Please refer to input type and
temperature range table
¡¿Ambient temperature
0°C to 50°C
¡¿Accessory
Spare 5VDC main adapter
Spare 4GB SD card
Calibration certificate
Other Specifications
¡¿Power supply
2 x 1.5V NiMH rechargeable
AA batteries > 2000 mAh /
2 x 1.5V alkaline AA batteries >
2000 mAh /
5VDC 250mA adapter
¡¿Data log interval
1 to 86,400 secs
Start/stop data record
manually or schedule the
start/stop time of data record
¡¿Resolution
0.1° for temp. below 1000°C/¢K
1° for temp. above 1000°C/¢K
¡¿Alarm configuration
12 alarms (2 for per channel)
with adjustable level HI or LO
¡¿Signal processing
Avg., min., max., std. deviation,
2-channel temp. difference
¡¿Response time
1s
¡¿Current draw
250mA while logging with full
display brightness
60mA in power saving mode
¡¿Maximum input voltage
60VDC or 24V rms to earth
ground
¡¿Output file format
.csv
¡¿Weight
180g without battery
