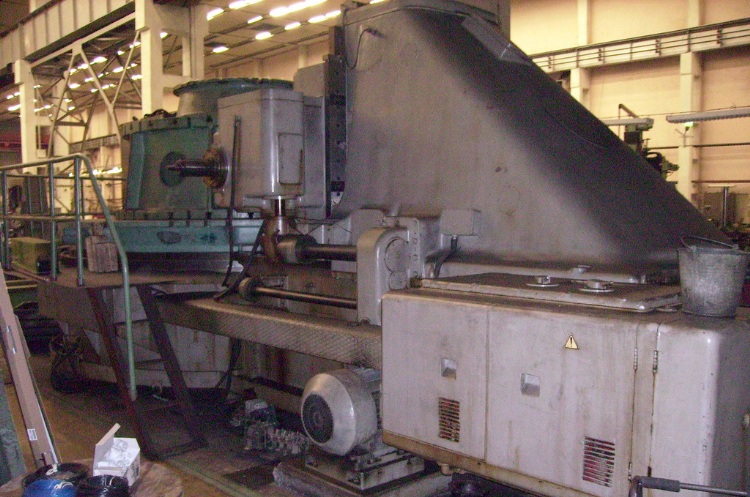

Gear hobber master machine 546M
Model: 546M STANKO
Category: Machine Tools / Gear Cutting Machines / Gear Cutting Machines
Characteristics
Gear hobber master machine 546M
Workpiece diameter, mm from 2250 till 5000
Module, mm 16
Number of teeth of the gear 120-800
Diameter of gear cutting heads, mm 320
Table diameter, mm 3800
Distance between surface of the table and center line of gear cutter, mm 550-950
Distance between centers axes of table and gear cutter, mm 1150-2700
Speed of tool spindle rotation, rpm 5.6-46
Radial feed per revolution table, mm/rev 0.093-3.1
Main motor power, kW 14
Weight of workpiece max, kg 40000
Machine weight, kg 75050
