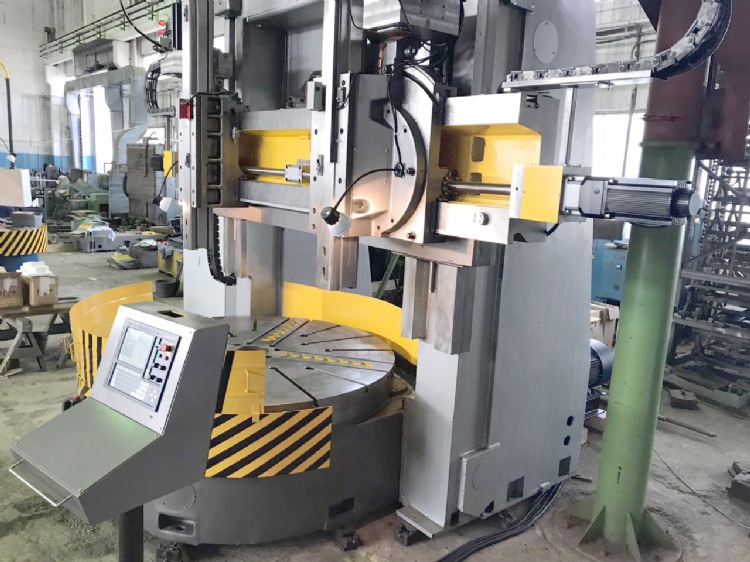

Vertical Turret Lathe 1525
Model: 1525
Category: Machine Tools / Lathes / CNC Lathes, Vertical Type
Characteristics
Machine is used for variety of turning and boring work:
- turning of cylindrical and conical surfaces;
- boring;
- facing;
- chamfering;
- cutoff;
- processing of parts with curved surface (jointly coordinated by two axes);
- threading - CNC option
The machine is used for processing of metal and non-metal materials with high precision and the constant cutting speed.
Given the ease and simplicity of the service machine has high resource efficiency
Turning diameter, mm (in) 2500 (99")
Faceplate diameter, mm (in) 2250 (88")
Turning height, mm (in) 1600 (63")
Workpiece weight, kg 13000
Vertical ram stroke, mm (in) 1200 (47.24")
Cutting force right slide, kN 41.7
Cutting force left slide, kN 32.9
Cutting force both supports, kN 65.7
Rapid travel (for supports), m/min 0.005-1.8
Rapid travel (for cross rail), m/min 0.36
Faceplate speed, RPM 1.6-110
Corner of supports turn, deg. + - 30
Tool size, mm (in) 50x50 (2x2")
Main drive power, kW 55
Machine weight, kg 35500
adjusting bolts
Karusselldrehmaschine – Doppelstaender
Umlaufdurchmesser - 2500 mm
Planscheibe - 2250 mm
Drehhoehe - 1600 mm
Max. stoesselhub - 1200 mm
Lichter durchgang planscheibe bis querbalken - 1700 mm
Max. Werkstueckgewicht - 13 Ton.
Planscheibendrehzahlbereich - 1,6 - 80 UpM
Antrieb hauptmotor - 40 KW
Gesamtleistungsbedarf - 55 KW
Maschinengewicht - 35,5 Ton.
