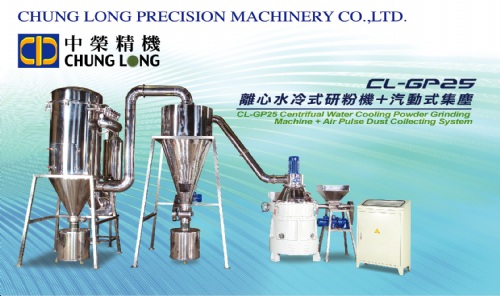

CENTRIFUGAL WATER COOLING POWDER GRINDING MACHINE
Model: CL-GP25
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Pharmaceutical Machines
Characteristics
FEATURES
1.Auto feeding and discharging device, manpower saving and increases
productivity.
2.To meet G.M.P. standard, the enclosed type dust collector ensure the
powder not fly out and will not contaminate the production area.
3.The centrifugal grinding rollers are indentation designed for maximum
grinding efficiency.
4.The grinding rollers and grinding wall have gone through high
frequency hardening treatment for longer life span.
5.Quality of grinded products is maintained by waiter circulating cooling
system to avoid temperature rise.
website: www.chung-long.com.tw
Specifications
SPECIFICATION:
1. Main Shaft Motor: 25HP, 220V/380V/415V.
2. Dust Collet Motor: 5HP, 220V/380V/415V.
3. Feeding Motor: 0.08HP Stepless Variable Speed (r.p.m).
4. Screening Motor: 2HP Stepless Variable Speed (r.p.m).
5. Discharging Motor: 1HP.
6. Powder Fineness: 100-500 mesh.
7. Grinding Capacity: 40-100 kg/hr.
8. Area L×W×H: 3800×1700×2200 (mm).
9. Weight Of Machine: 1600 kg.
