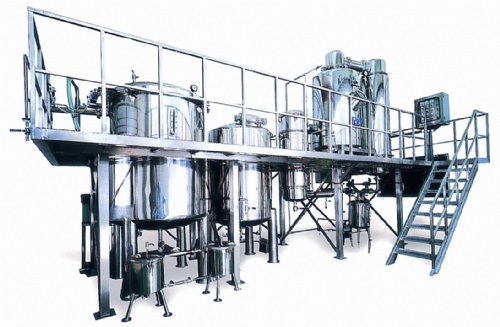

ENCLOSED TYPE VACUUM CONCENTRATION BOILING EVAPORATOR
Model: CL- VC200/VC500/VC1000/VC1500
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Pharmaceutical Machines
Characteristics
FEATURES:
1.MACHINE USES LATEST TOUCH SCREEN PLC CONTROLL, EASY
OPERATION. ABLE TO STORAGE OF OPERATION PROGRAMS.
2.WITH TEMPERATURE, VACUUM AND WATER LEVEL DETECTOR TO
MONITOR OPERATION CONDITION. DURING AUTOMATIC MODE
MACHINE ABLE TO MONITOR STABILITY OF VACUUM IN ORDER TO
ACHIEVE HIGHLY CONCENTRATED LEVEL OF CONCENTRATED LIQUID.
3.DURING CONCENTRATING OPERATION, WATER AND ALCOHOL ARE
ABLE TO RECYCLE. 80% ANDABOVE OF ALCOHOL IS ABLE TO
RECYCLE THUS TO REDUSE COST DURING CONCENTRATING
OPERATION.
4.USES HEAT EXCHANGER TO EXCHAGE ENERGY, THUS NO OVER
BURNT OR OVER COOK DURING CONCENTRATING OPERATION.
5.MACHINE IS UNDER VACUUM CONDITION DURING HEATING AND
BOILING OPERATION THUS THERE IS NO PARTIALY HEATING
THROUGHOUT CONCENTRATING OPERATION.
6.MACHINE USES HIGH QUALITY PRESSURE REDUSING, PRESSURE
RELAASE AND SAFTY VALVES THUS TO ENSURE SAFETY OF
OPERATOR DURING OPERATION.
7.MACHINE USES ORIGINAL TATUNG AND TECO 'E' CLASS INSULATING
MOTOR. GUARANTEED IN PERFORMANCE AND QUALITY.
8.ICE WATER COOLING CIRCULATION SYSTEM TO PREVENT
OVERHEATING DURING CONCENTRATING OPERATION.
website: www.chung-long.com.tw
Specifications
SPECIFICATION OF MACHINE:
1. Specification: (1) VC200。(2) VC500。(3) VC1000。(4) VC1500。
2. Operating Volume (L): (1)200L。(2)500L。(3)1000L。(4)1500L。
3. Evaporation Pressure (kg/cm2): (1) 2~3。(2) 3~4。(3) 3~4。
(4) 4~5。
4. Evaporation Cad (kg/hr): (1) 80~100。(2) 350~400。(3) 500~600。
(4) 1000~1200。
5. Dimension Of Machine (mm): (1) 3,000x2,350x3,200。
(2) 3,200x2,500x4,000。
(3) 3,500x2,730x4,300。
(4) 3,700x2,800x4,800。
6. Motor (HP): (1) 10HP。(2) 30.5HP。(3) 40.5HP。(4) 51.5HP。
