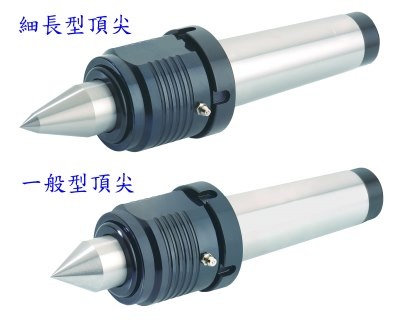

Medium-Duty Live Centers
Model: Medium-Duty Live Centers
Category: Machine Tools / Tools, Cutters, Mold & Dies / Lathe Centers
Characteristics
1. Suitable for CNC Lathes, high-speed lathes and general lathes.
2. Standard point & Long point type.
3. Live centers attachment locking nut can be easily removed from the tailstock.
4. T.I.R. guaranteed below ±0.00008" (0.002mm).
5. Made of alloy steel & ground for high accuracy.
6. 60° included angle.
7. MT3 ~ MT5 Taper.
8. 4500 Max. RPM
Specifications
1. Suitable for CNC Lathes, high-speed lathes and general lathes.
2. Standard point & Long point type.
3. Live centers attachment locking nut can be easily removed from the tailstock.
4. T.I.R. guaranteed below ±0.00008" (0.002mm).
5. Made of alloy steel & ground for high accuracy.
6. 60° included angle.
7. MT3 ~ MT5 Taper.
8. 4500 Max. RPM
