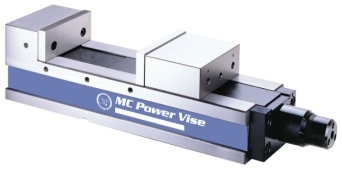

Super Open Type Precision Vise
Model: Super Open Type Precision Vise
Category: Machine Tools / Tools, Cutters, Mold & Dies / Vises
Characteristics
◆ The new dust cover design prevents metal debris and scrapes falling into the vises while machining.
◆ New development patented, oil-free powerful mechanical boost system.
◆ Large openings can easily hold longer workpieces.
◆ Vice can be mounted horizontally or vertically.
◆ 0.0004" per 4" for very high accuracy of parallelism.
◆ Four kinds of clamping methods offer wider applications.
Specifications
| Jaw Width | Jaw Opening | Jaw Depth | Overall Length | Overall Height |
| 4" ( 100 mm ) |
7-7/8" ( 200 mm ) |
1-49/64" ( 45 mm ) |
20-55/64" ( 530 mm ) |
5-1/8" ( 130 mm ) |
| 5-1/8" ( 130 mm ) |
9-7/16" ( 240 mm ) |
1-31/32" ( 50 mm ) |
22-53/64" ( 580 mm ) |
5-45/64" ( 145 mm ) |
| 6-9/32" ( 160 mm ) |
11-13/16" ( 300 mm ) |
2-23/64" ( 60 mm ) |
26-49/64" ( 680 mm ) |
6-9/32" ( 160 mm ) |
| 7-7/8" ( 200 mm ) |
13-3/8" ( 340 mm ) |
2-23/64" ( 60 mm ) |
28-3/4" ( 730 mm ) |
6-11/16" ( 170 mm ) |
