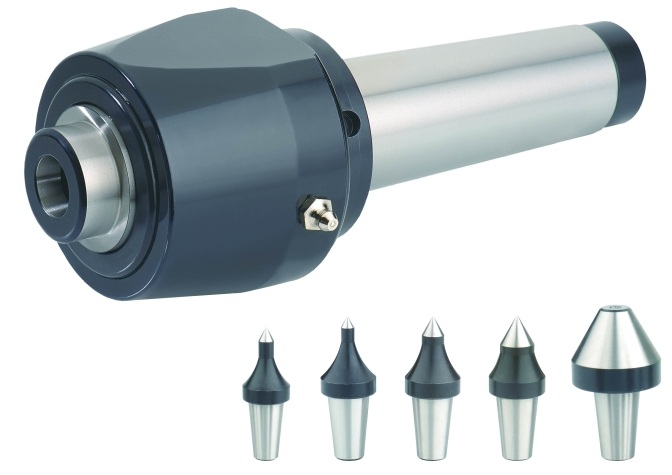

Heavy-Duty Interchangeable Live Center Sets
Model: Interchangeable Live Center Sets
Category: Machine Tools / Tools, Cutters, Mold & Dies / Lathe Centers
Characteristics
1. Suitable for CNC lathes, high-speed lathes and other machine tools.
2. MT 3、MT 4 and MT 5 taper.
3. T.I.R. guaranteed below ±0.0002" ( ±0.005mm ).
4. With a max. taper of Ø 18.5mm interchangeable point for use of small diameter turning.
5. Ø10mm Flate Point, Ø6mm Point, Ø8mm Point, Ø10mm Point, Ø12.7mm Point, Ø32mm Point etc. interchangeable.
6. Point hardened to 57~60 HRC.
7. Max. 6000 RPM
Specifications
1. Suitable for CNC lathes, high-speed lathes and other machine tools.
2. MT 3、MT 4 and MT 5 taper.
3. T.I.R. guaranteed below ±0.0002" ( ±0.005mm ).
4. With a max. taper of Ø 18.5mm interchangeable point for use of small diameter turning.
5. Ø10mm Flate Point, Ø6mm Point, Ø8mm Point, Ø10mm Point, Ø12.7mm Point, Ø32mm Point etc. interchangeable.
6. Point hardened to 57~60 HRC.
7. Max. 6000 RPM
