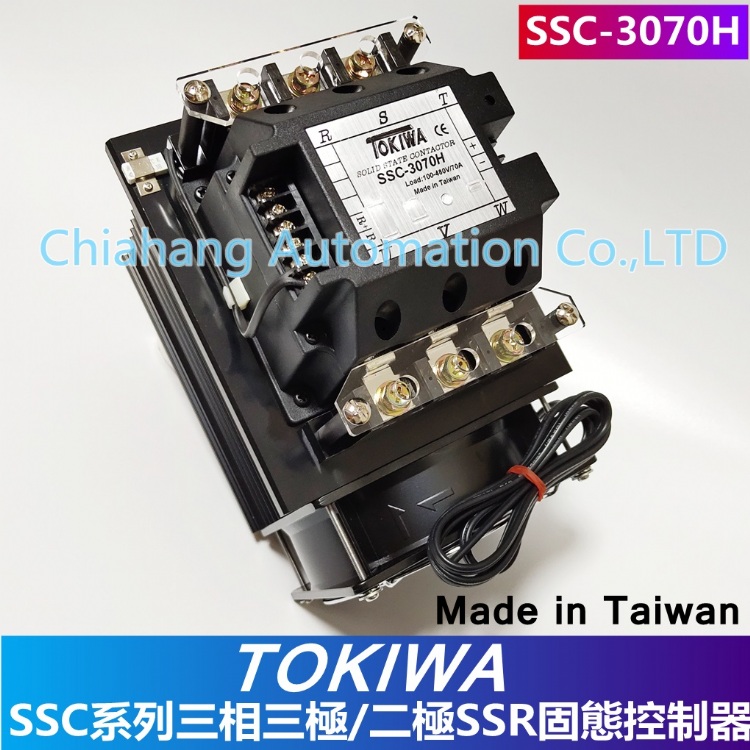

TOKIWA SSC-3050H SSC-3070H SSC-3100HL Three-phase solid state controller
Model: SSC-3050H SSC-3070H SSC-3100HL SSC-2065H
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Chemical instruments, power-type voltage output adjustment equipment, transformer primary control, lighting control system, plastic extruder, UV / IR tube heating, dryer, mold heating, plastic leather laminating machine, metal heat treatment, blister machine, Food machinery, EVA machinery, electric heating copper furnace, molding machine, constant temperature tester and various industrial heating controls.
Specifications
Taiwan TOKIWA and TOPTAWA / SCR controllers are in response to the changes and innovations in the structure of traditional electrical control equipment, in order to provide more accurate, stable and advanced electrical control equipment to customers. In 1990, it introduced the Japanese "TOKIWA" series temperature control product manufacturing technology. .
TOKIWA / TOPTAWA power controller (SCR), TOKIWA / TOPTAWA solid state contactor (SSC), TOKIWA / TOPTAWA solid state relay (SSR), TOKIWA / TOPTAWA products are widely used, mainly applicable to the following industries: high temperature boilers, Powder metallurgy, vacuum plating, wire and cable machinery, high-temperature ceramic kiln, fiber dyeing and heating equipment, physical and chemical instruments, power-type voltage output adjustment and adjustment equipment, transformer primary control, lighting control system, plastic extruder, UV / IR Tube heating, dryer, mold heating, plastic leather laminating machine, metal heat treatment, blister machine, food machinery, EVA machinery, electric copper furnace, molding machine, constant temperature tester and various industrial heating controls. Zh
1.TOPTAWA / TOKIWA Product Features:
1. With the system power supply (R.S.T) out-of-phase abnormal indicator light display, the SCR stops output to prevent the fuse from over-wave burning due to the in-phase generated surge. After the R.S.T is restored, the SCR automatically returns to normal mode, with an abnormal light
Off, without any reset action, to achieve the ideal state of automatic control.
2. It has the functions of blown fuse, abnormal light display and SCR stop output. When the fuse is removed, the normal working mode is automatically restored.
3. Auxiliary voltage range: 88VAC-264V AC (50Hz / 60Hz), more flexible application range, suitable for use in areas with unstable voltage.
4. System power (R.S.T) 50Hz / 60Hz automatic identification, to achieve the most ideal and perfect power output conditions, suitable for use in countries around the world.
5. No trouble of power transmission sequence, which can greatly save distribution man-hours, labor costs, material loss, and improve work efficiency.
6. Restarting the SCR at any time has the function of slow start, reducing the surge current and extending the life of the fuse.
7, small size, easy troubleshooting.
8. The fan adopts a patented extraction method, which greatly overcomes the problem of difficult maintenance.
9. It contains the SCR maximum output setting VR, no need to connect externally.
10. Other functions such as over current, over voltage, constant current, constant voltage, heater disconnection, etc., and corresponding alarm contact output.
2.TOKIWA / TOPTAWA specifications are divided into:
TOKIWA / TOPTAWA single-phase phase control, TOKIWA / TOPTAWA three-phase phase control, TOKIWA / TOPTAWA single-phase zero control, TOKIWA / TOPTAWA three-phase zero control, suitable for constant impedance load type, transformer inductive load, IR lamp
Tube start load, constant voltage and constant current control type.
TOKIWA / TOPTAWA three-phase phase power controller
TOKIWA / TOPTAWA--TMPT series: TMPT0204.TMPT0304.TMPT0504.TMPT0704.TMPT1004.TMPT1204.TMPT1604.TMPT2004.TMPT2504. TMPT3004
Rated load current: 20A.30A.50A.70A.100A.120A.160A.200A 250A.300A
Rated load voltage: 380V
Size: (20A.30A.50A) 98.5 * 126 * 170; (70A.100A.120A) 208 * 140 * 200; (160A.200A.) 468 * 140 * 200 (250A.300A) 648 * 190 * 215
Auxiliary power: 88-264V (50Hz / 60Hz)
TOKIWA / TOPTAWA three-phase zero-position power controller
TOKIWA / TOPTAWA--ZT series: ZT0204.ZT0304.ZT0504.ZT0704.ZT1004.ZT1204.ZT1604.ZT2004.ZT2504.ZT3004
Rated load current: 20A.30A.50A.70A.100A.120A.160A.200A.250A.300A
Rated load voltage: 380V
Size: (20A) 98.5 * 126 * 115; (30A) 98.5 * 126 * 170; (50A) 133 * 126 * 170; (70A.100A.120A) 208 * 140 * 200;
(160A.200A) 350 * 140 * 200; (250A.300A) 468 * 140 * 200
Auxiliary power: 88-264V
TOKIWA / TOPTAWA single-phase phase power controller
TOKIWA / TOPTAWA--PS series: PS0204.PS0304.PS0504.PS0704.PS1004.PS1204.PS1604.PS2004.PS2504.PS3004
Rated load voltage: 20A.30A.50A.70A.100A.120A.160A.200A.250A.300A
Rated load voltage: 380V
Size: (20A.30A) 98.5 * 126 * 115; (50A.70A) 98.5 * 126 * 170; (100A.120A) 175 * 126 * 170;
(160A.200A) 330 * 140 * 200; (250A.300A) 330 * 140 * 200
TOKIWA / TOPTAWA three-phase SSC solid-state controller
TOKIWA / TOPTAWA--SSC series:
SSC-3030H .SSC-3050H .SSC-3070H .SSC-3100H .SSC-3120H .SSC-3160H .SSC-3200H .SSC-3300H.
SSC-2030HL.SSC-2050HL.SSC-2070HL.SSC-2100HL.SSC-2120HL.SSC-2160HL.SSC-2200HL.SSC-2300HL.
SSC-3030HL.SSC-3050HL.SSC-3070HL.SSC-3100HL.SSC-3120HL.SSC-3160HL.SSC-3200HL.SSC-3300HL.
Rated load current: 20A.30A.50A.70A.100A.120A.160A.200A.250A.300A
