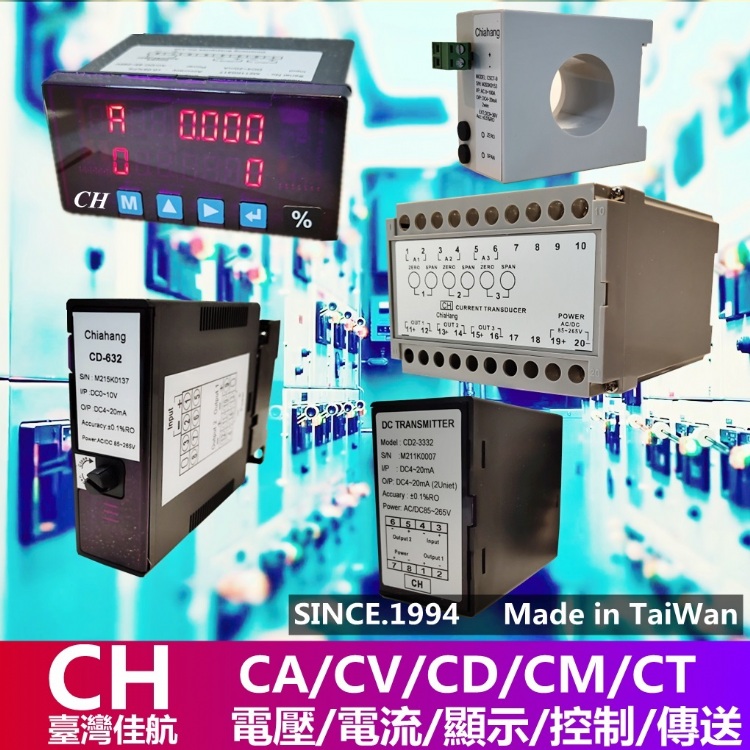

"CH" CHIAHANG brand AC/DC digital display power meter, watt meter, converter, transmitter



Model: CMA/CMV/CMW/CMWH/CMS/CME/CSCT/CD/CA/CV

Category: Machinery Parts and Components / Other Machinery / Other Machinery



Online Inquiry





Characteristics



1994 Founded "Jiahang Enterprise Co., Ltd." in Kaohsiung, Taiwan (referred to as ChiaHang products with CH as the brand marketing from all walks of life)
With CM series LED digital display power meter, CD series transmitter, CA / CV/CSCT converter research and development, production, serving Taiwan enterprises, products are exported to Europe, America, Southeast Asia;

CMWH watt hours, lack of watches
Features:
High accuracy 0.2%Rd/PF+0.02%FS

Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Provide operation indicator light flashing, buy and sell electricity independent display
WH or VarH blackout memory lasts for 10 years without additional batteries

CMA single-phase AC current meter
Features:
High accuracy 0. 15%FS+1Counts

Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMV single-phase AC voltage gauge
Features:
High accuracy 0. 15%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

Three-phase AC current meter
Features:
High accuracy 0. 15%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

Three-phase AC voltage meter
Features:
High accuracy 0. 15%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMPF power factor table
Features:
High accuracy 0.02%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMVA AC voltage, current synthesis table
Features:
High accuracy 0. 15%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMHZ frequency table
Features:
High accuracy 0.02%FS+1Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMTR platinum resistive temperature table
Features:
High accuracy 0.15%RS+0.3 degrees
The output uses a 16-bit digital/analogue (D/A) conversion
Can be buffered and digital output at the same time, digital output (Modbus-RTU)
Value, minimum, and other functions (optional)
High isolation capacity power supply/input/output/shell

CMTC thermocouple temperature gauge
Features:
High accuracy 0.2% FS+0.3 degrees Celsius
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMS two-wire DC scale table
Features:
High accuracy 0.04%FS+2 Counts
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CME DC scale table
Features:
High accuracy 0.04%FS+2 Counts
輸出/顯示示/設定 範圍可程式對應
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Value, minimum value and other functions (optional)
High isolation capacity power supply/input/output/shell

CMW watts, lack of tables
Features:
High accuracy 0.2%Rd/PF+0.02%FS
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
High isolation capacity power supply/input/output/shell

CMWWH watt, watt-hour synthesis table
Features:
High accuracy 0.2%Rd/PF+0.02%FS
Output is 16-bit digital/analogue (D/A) conversion
Analogous and digital simultaneous output, digital output (Modbus-RTU)
Provide operation indicator light flashing, buy and sell electricity independent display
WH or VarH blackout memory lasts for 10 years without additional batteries

CMDW DC watt meter
Features:
High accuracy 0.15%RO+CountS
Output/display is converted using 16-bit digital/analog (D/A).
Analogous and digital simultaneous output, digital output (Modbus-RTU)
High isolation capacity power supply/input/output/shell

CD DC 8PIN signal converter
CA AC current converter
CV AC voltage converter
CSCT two-wire current converter
