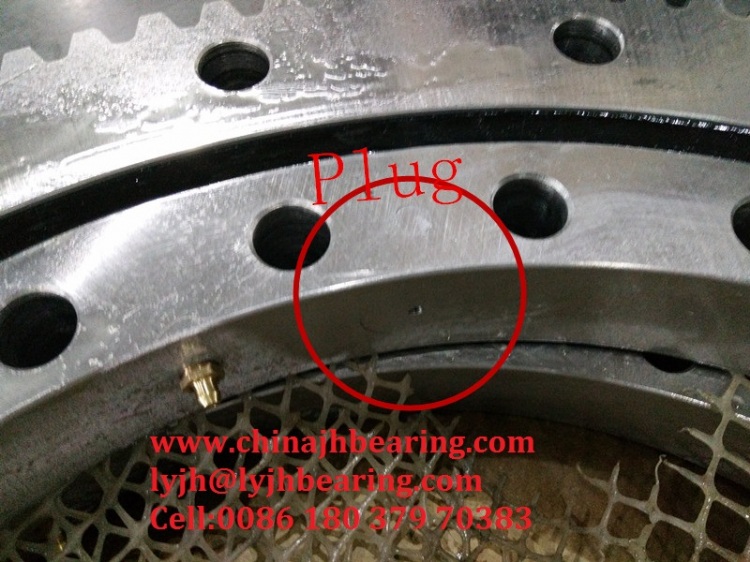

MTE-470 Belong to four point contact ball slewing bearing 683.26x469.9x60mm
Model: MTE-470
Category: Machinery Parts and Components / Machinery Parts and Components / Bearings
Characteristics
MTE-470 slewing ring application:
Power Plants, Cement and Mining industry. Making use of top-grade components,
Stacker Handling Equipment,Reclaimer Machine,Grab.
Specifications
MTE-470 Belong to four point contact ball slewing bearing with external teeth,
We had offered the bearing MTE-470 to our mining equipment customer ,Now We will introduce Slewing bearing MTE-470 specification as follows:
|
Slewing bearing type |
MTE-470 with external teeth |
|
Dimension: |
683.26x469.9x60mm 26.9x18.5x2.375 inch size |
|
Outer dia： |
683.26 mm(26.9 inch size) |
|
Inner dia： |
469.9mm(18.5 inch size) |
|
Height： |
60 mm(2.375 inch size) |
|
Weight |
80 kgs |
|
Outer ring hole qty |
18 pcs |
|
Inner ring hole qty |
24 pcs |
|
Outer ring and inner ring material |
50Mn |
|
Ball bearing |
LYC ball Brand ,GCr15SiMn |
|
Lubrication |
Grease lubrication |
MTE-470 Slewing bearing external teeth parameter as follows:
|
No of teeth |
Z=106 |
|
Press angle |
A=20 degree |
|
Modification coefficient |
X=0 |
