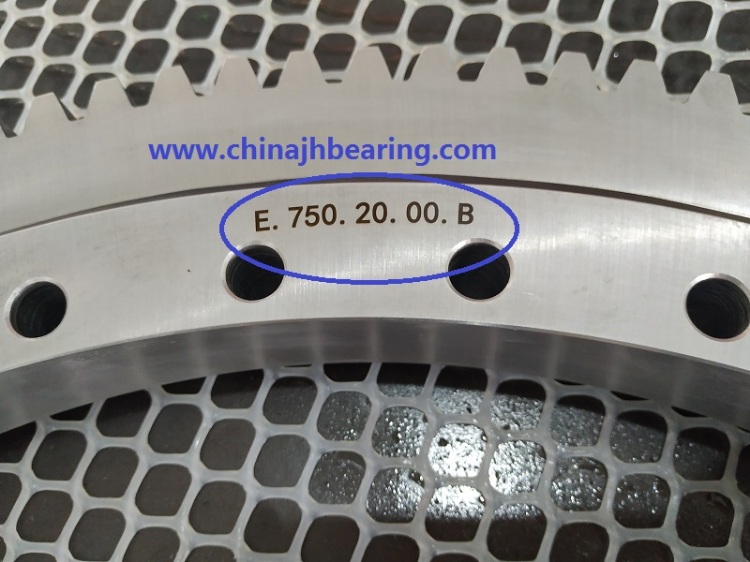

Slewing ball bearing E750.20.00.B with size 742.3x572x56mm with external teeth
Model: E750.20.00.B
Category: Machinery Parts and Components / Machinery Parts and Components / Bearings
Characteristics
E 750.20.00.B slewing bearing with external teeth belongs to thin section bearing, the outer ring and inner ring height only 56mm,
E750.20.00.B Slewing bearing consist of outer ring,inner ring,ball and seal.The outer ring with teeth. It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.
Specifications
E 750.20.00.B slewing bearing with external teeth belongs to thin section bearing, the outer ring and inner ring height only 56mm,
E750.20.00.B Slewing bearing consist of outer ring,inner ring,ball and seal.The outer ring with teeth. It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.
E750.20.00.B slewing bearing size details as following :
Bearing type |
E 750.20.00.B |
Size |
742.3x572x56mm |
Outer dia |
742.3mm |
Inner dia |
572mm |
Height |
56mm |
Rolling Body: |
Ball |
Outer ring material |
50Mn,42CrMo |
Inner ring material |
50Mn,42CrMo |
Ball material |
GCr15 |
Sealing Type |
Double seal |
