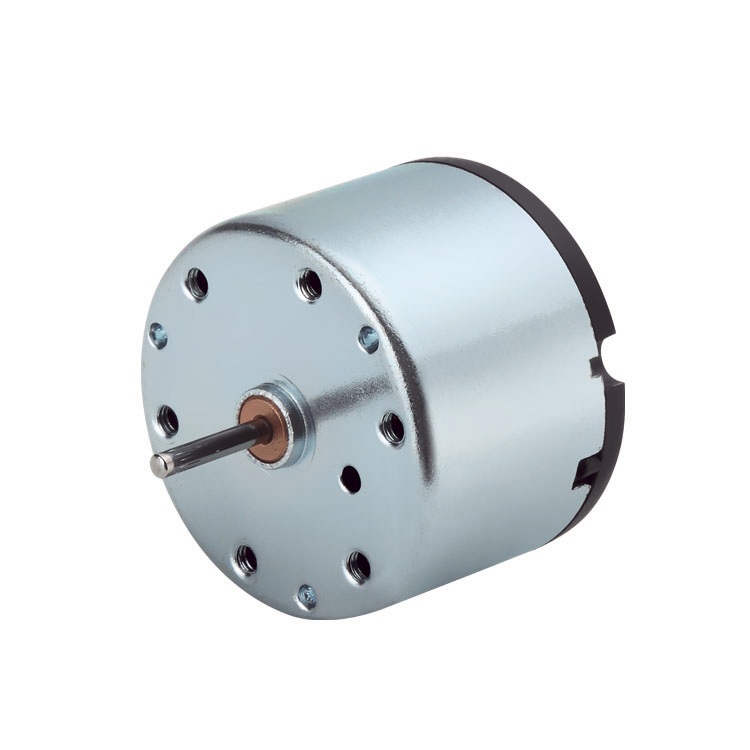

Small Carbon Brushed DC Motor In 6V - 24V Voltage 33mm Diameter

Enlarge

Small Carbon Brushed DC Motor In 6V - 24V Voltage 33mm Diameter

Model: HN330

Category: Machinery Parts and Components / Machinery Parts and Components / Motors

Online Inquiry

Characteristics

DC motor in φ33 mm OD and 6-12 Voltage operating range can be adjusted, surely with high RPM, convenient in speed control, easy to install, high in starting torque, long life span advantages. According to customer diversity DC motor requirements, the gear reducer controller and encoder are available to add on HN330, it can be applied to coin exchange machine, grabber machine, powered respirator, power-assisted bicycle, massage tool, smart door lock and lab equipment.

HSINEN DC geared motor company has over 30 years of mature manufacturing experience, stable material quality in the shaft, motor speed reducer all from research and development design to manufacturing one-stop production line, giving you high efficiency, MIT high quality committed.

Specifications

Features

Shaft: Central Shaft
Spin Direction: Bi-Direction
Carbon Brush.
Magnet Type: Rubber Magnet / Ring-Shaped Permanent Magnet.
Low Noise, High Performance, Engery Saving.
High RPM, MIT, Installation Friendly.
Customized small DC motors with all specification by your requirements.

Specification

Voltage: DC 6V ~ 24V
OD: φ 33 mm

-------------------------------------------------------------------------------------------------------------

※ More specification please see Hsiang Neng web: www.hsiangneng.com

-------------------------------------------------------------------------------------------------------------

Motor Drawing

Motors Test List

Model 330	Voltage		No Load		At Maximum Efficiency					Stall Torque
	Operating Range	Nominal V.DC	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	EFF	Stall Torque
	Operating Range	Nominal V.DC	RPM	mA	RPM	mA	g-cm	W	%	g-cm
HN330A-2414T	6V~12V	6V	7300	130	5571	434	28.04	1.604	61	200
HN330A-1924T	6V~12V	6V	4300	70	3213	260	26.69	0.881	56	160
HN330A-1634T	6V~24V	12V	6000	65	5017	226	34.56	1.781	65	220
HN330B-1250T	6V~24V	12V	5700	50	3713	166	26.76	1.02	50	90
HN330A-1640Y	6V~24V	24V	5800	70	5118	149	40.83	2.146	59	260

* The appearance of the motor/ gearbox may be different according to the special specifications or special gear ratio, please contact us to get more detail.
