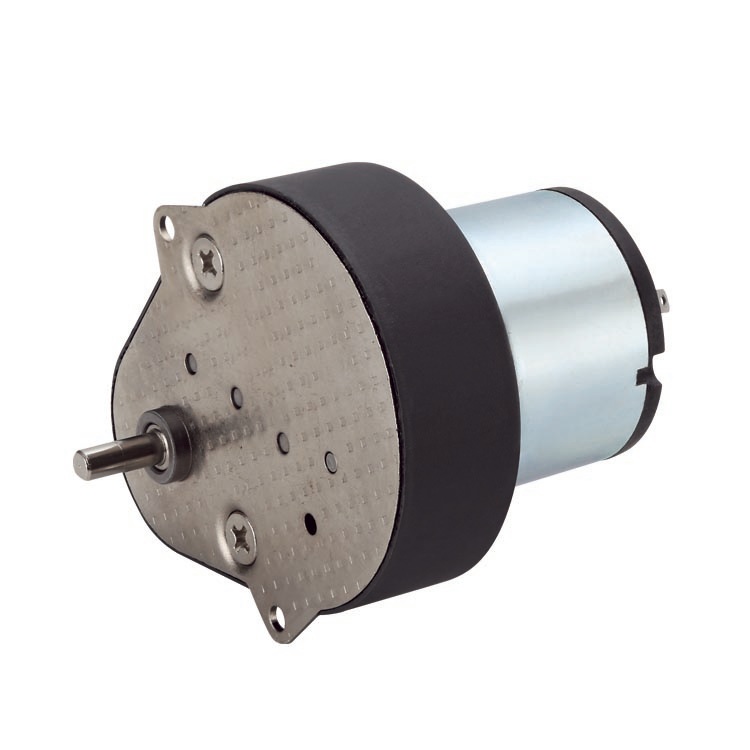

90 Degree Flat Spur Gearbox 66.5mm With 33mm 6V - 24V DC Motor



Model: HN50GWD-HN330

Category: Machinery Parts and Components / Machinery Parts and Components / Motors



Online Inquiry





Characteristics



DC motor Hsiang Neng HN50GWD series is flat spur gearbox, which is used with 66.5mm x 53.6mm gearbox and 33mm DC motor series. It has high durability, high performance, high precision, high starting torque, low failure rate, small size, and convenient assembly and disassembly. The voltage range is 6V, 12V, 24V, the maximum output torque is 6kg-cm, and the gearbox can be customized.

DC geared motors are widely used in electric bicycles, vending machines, currency exchange equipment, game consoles, medical equipment, teaching equipment, beverage sealing machines, sweepers, coffee machines, electronic smart locks, shredders, and electric curtains, safety equipment, small automation equipment and other products, HSINEN motor can customize various types of speed, torque, voltage, output shaft and other parameters to meet the application requirements.

HN50GWD is flat gearbox type for vending machine and other applications, that can be used with all HSINEN DC geared motors and no tolerances. We also provide various outer diameters, such as 27mm, 30mm, 35mm, 50mm reducer and DC gear motor, to meet various mechanical equipment, output performance can be customized according to customer requirements, such as outer diameter, torque, output shaft size gearbox gear ratios, different combination gear sets can effectively reduce the output speed and increase the output torque for more efficient performance.
