[MOS Technology] Jenoptik LDM4x seres
Model: Jenoptik LDM41
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Jenoptik accurate and reliable laser rangefinders
Benefits :
Wide portfolio: Broad selection of LiDAR sensors for measuring any distance on any target
High performance: long measurement ranges and high measurement accuracy on natural surfaces
Fast: enabling distance tracking, speed measurement, and scanning systems
Low life cycle costs: highly efficient, enduring, non-wearing measurement technology
Reliable and robust technology: EMI-shielded, case-hardened, O-ring-sealed chassis ensures operability in extreme environments, ruggedized housing for harsh industrial environments
Easy to integrate: compact laser class 1 and 2 sensor modules for easy integration into sensor solutions for a maximum range of application scenarios
- up to 150 meter measurement range
- up to a few millimeters accuracy
- up to 50 hertz measurement rate
- measures 30 meter distances on natural surfaces with millimeter precision
- phase comparison method
Specifications
Laser Distance Sensors for long measuring ranges and millimeter accuracy
Proven technology for measuring distances and positions – ready to integrate in industrial applications.
Jenoptik laser distance sensors monitor or measure distances or object lengths, provide positional location, and determine fill levels from a few centimeters up to three kilometers in a non-contact fashion. These distances are measured with an accuracy of up to one millimeter and at a output rate of several thousand readings per second. The measured object can be a solid, energy absorbing or radiating hot body. Especially measurements on natural surfaces with low reflectivity are also possible. The laser distance sensors even can measure distances to or from moving objects.
The industry-proof housing with compact footprint and industry standard interface options make the laser distances sensors ideal for integration into your automation and process control systems. The distance sensors are available with RS-232, RS-422, Profibus, or SSI interfaces and bus systems. Along with digital switching and analog output the sensors easily adapt into automation environments. The ruggedized housing with integrated heating enables installation where needed – even in harsh industrial environments.

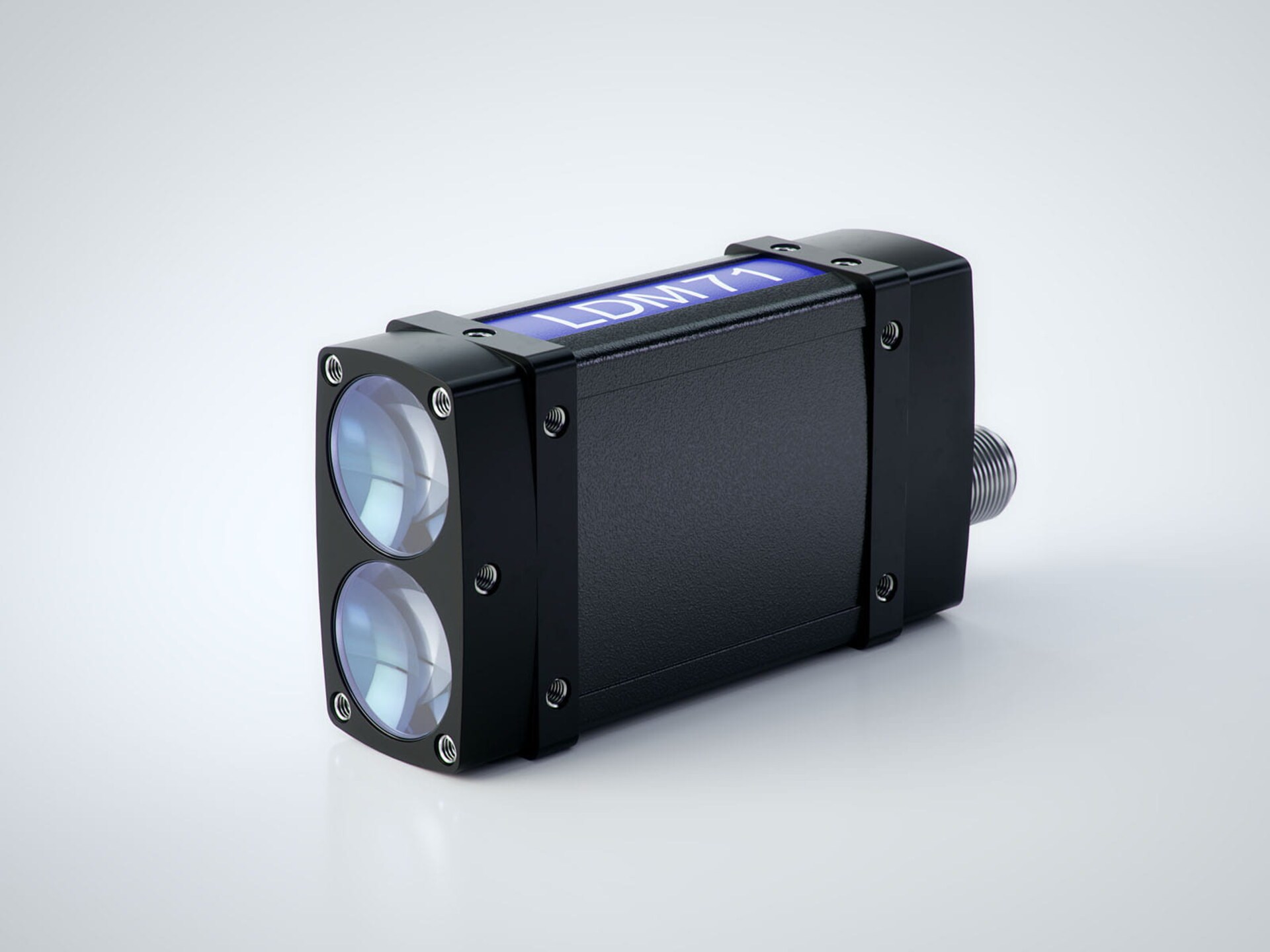

LDM7x series
- up to 40 kHz measurement rate
- up to 270 meter measurement range
- operating temperature between -40 °C and +60 °C
- pulse-mixing-method

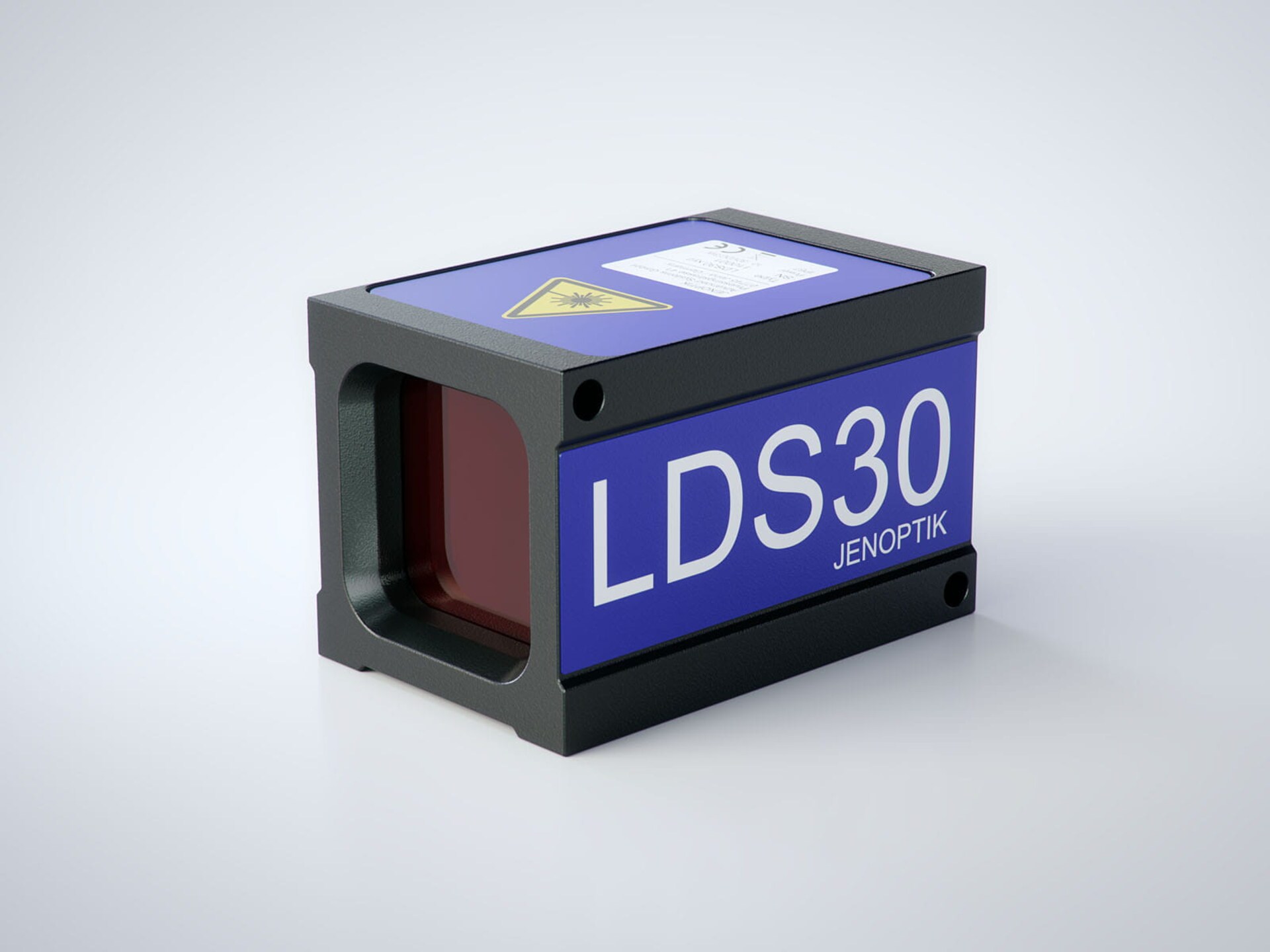

LDS30 series
- up to 30 kHz measurement frequency
- up to 30 meter measurement range on surfaces with 10 % reflectance
- extremely compact, lightweight, case-hardened housing
- resistant to impact and shock associated with industrial applications
- time-of-flight method

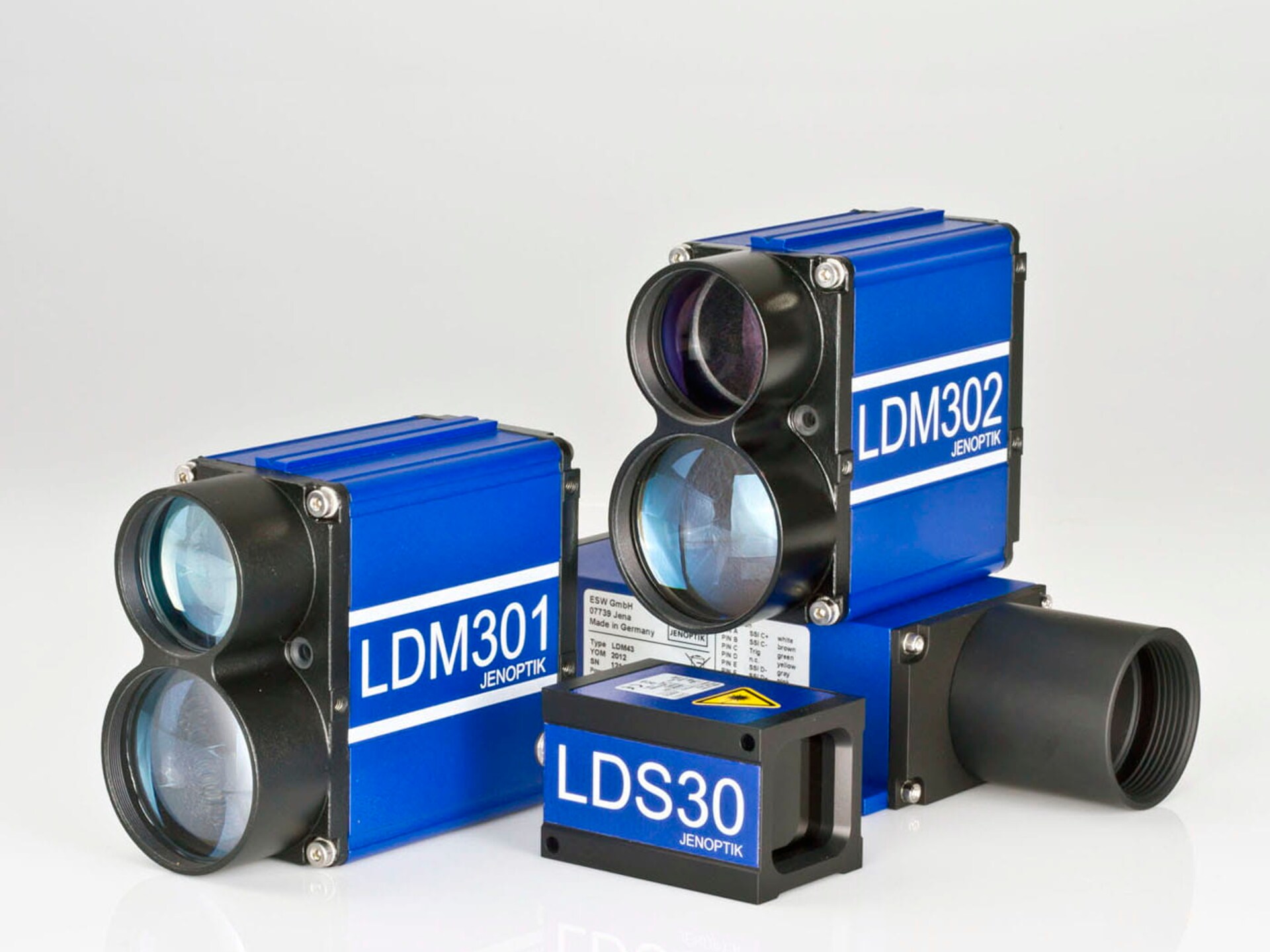

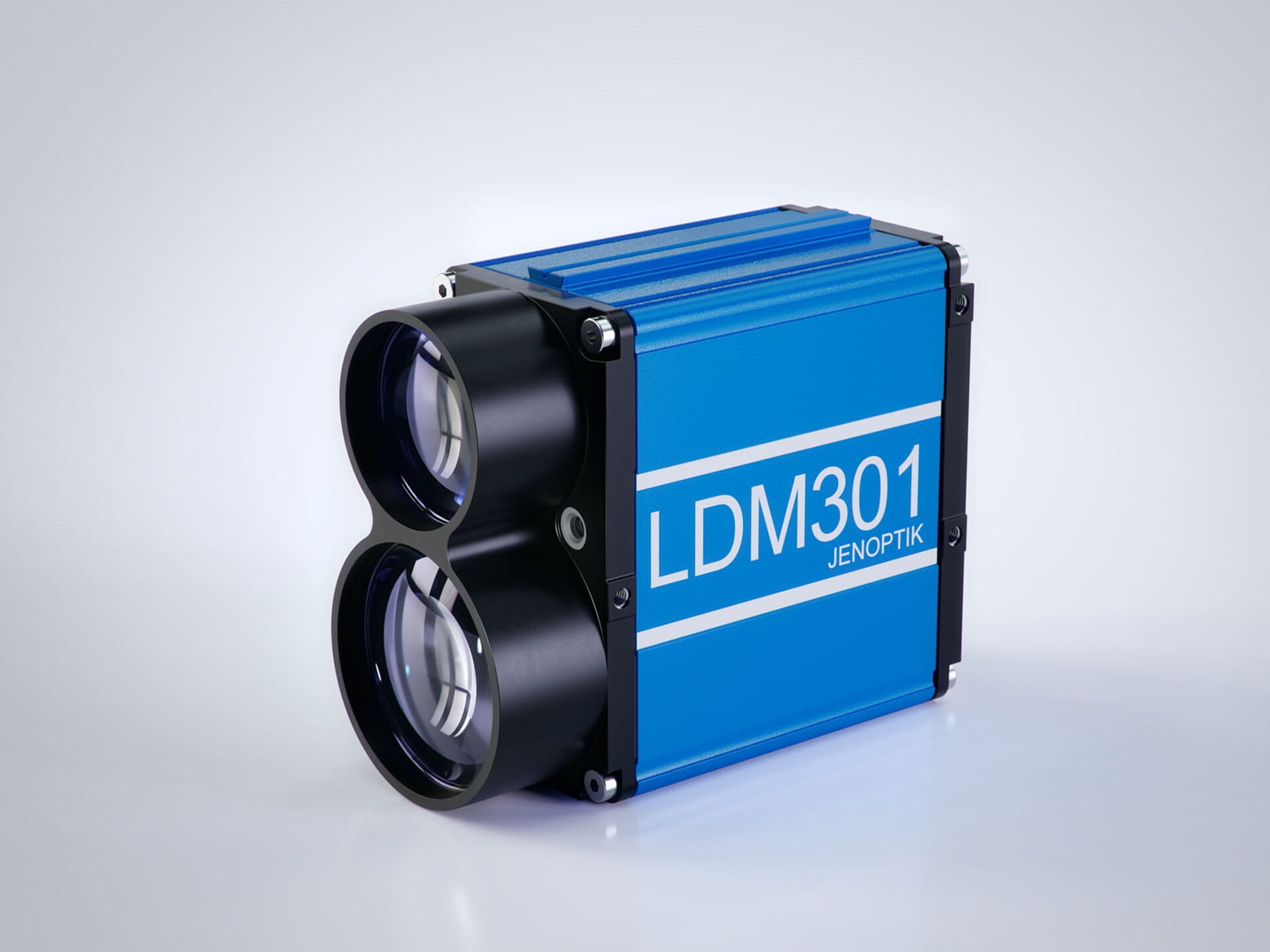

LDM301 series
- up to 3000 meter measuring range
- EMI-hardened housing, O-ring-sealed
- water and abrasion resistant for use in harsh environments
- measuring moving objects with a reflectance of 6 % at distances of 200 meter

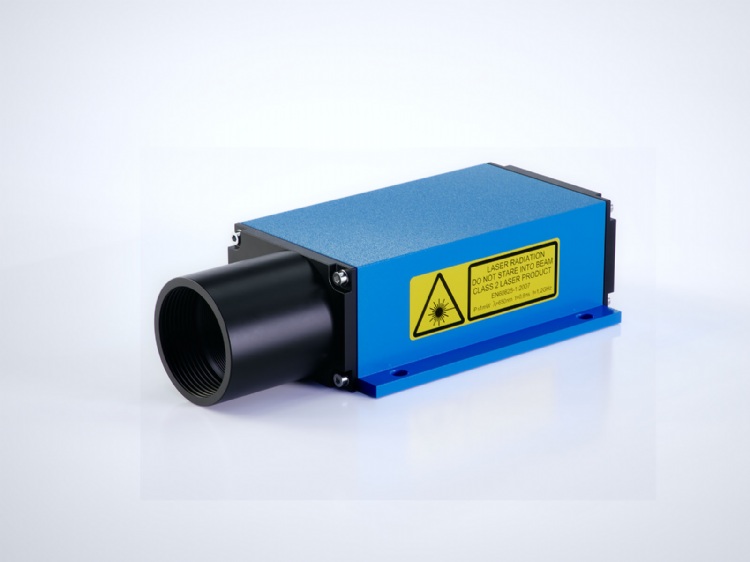

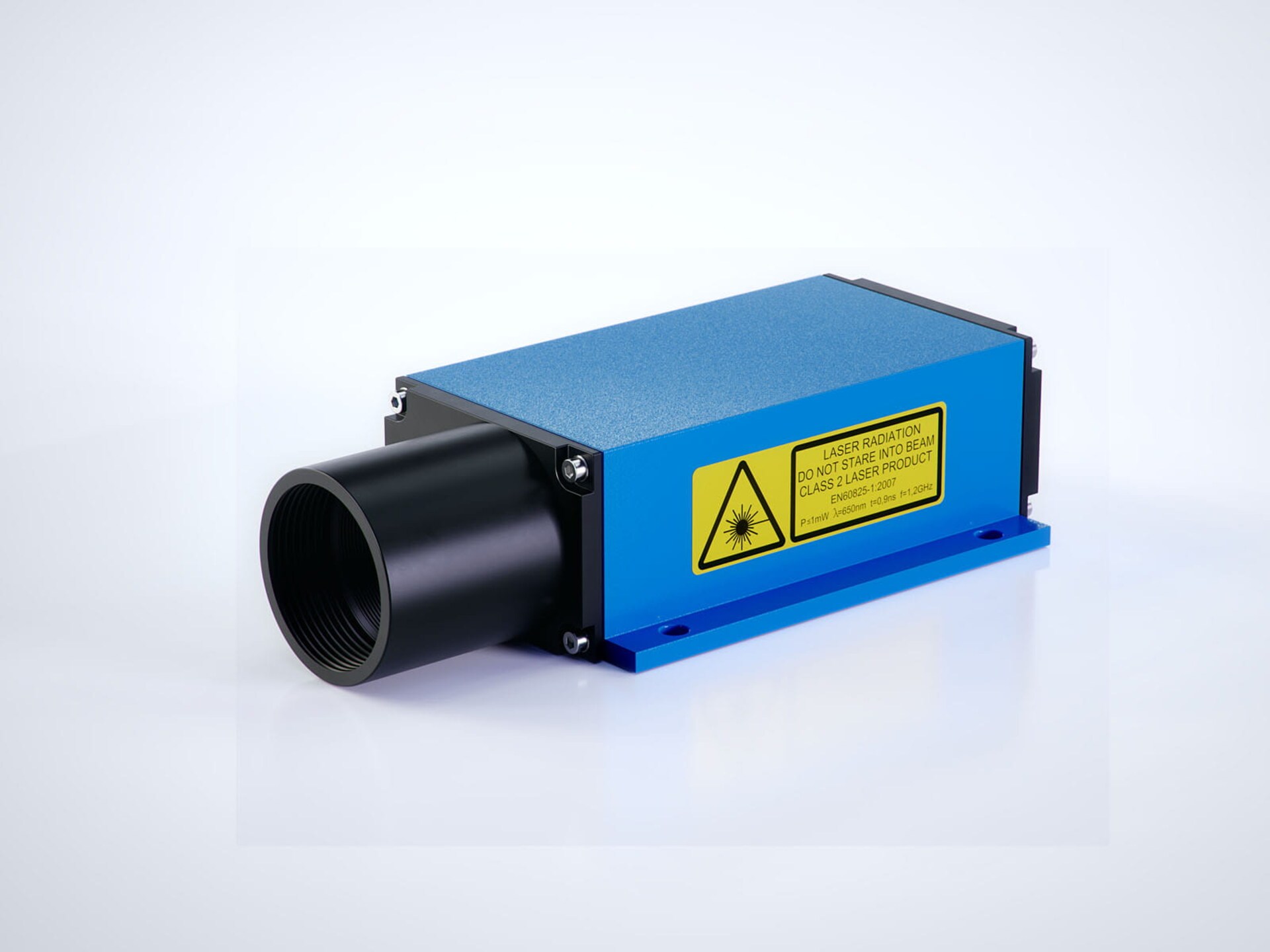

LDM4x series
- up to 150 meter measurement range
- up to a few millimeters accuracy
- up to 50 hertz measurement rate
- measures 30 meter distances on natural surfaces with millimeter precision
- phase comparison method
