Specifications

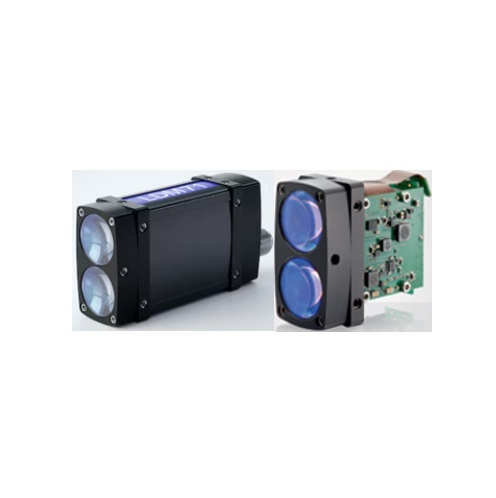

[瀚笙科技] 德國JENOPTIK工業用雷射測距儀-LDM71 LDM72 (高頻掃描以及驅動訊號應用)

The compact distance sensor modules of the LDM7x series are designed for system integrators as well as OEM customers who want to use the measuring characteristics of the proven LDM71 product series in their own sensor systems or customer-specific automation solutions. Thus, we offer the right solution for a wide range of applications. With their high measuring frequency, the sensor modules are particularly suitable for scanning systems, such as 2D or 3D LiDAR scanners for monitoring or positioning tasks.

德國JENOPTIK工業用雷射測距儀-LDM71


應用：
•距離量測和目標物訊號回覆
•接近感應與警示
•2D 與 3D 掃描
•工業自動化

優勢：
•高頻率量測
•長距離量測
•符何人眼安全等級
•IP67 防護等級
•工業標準接頭界面
•易整合於系統



性能描述和特徵：

Technology

laser

Output

Interface Options: RS-232, RS-422

Description

The laser distance sensors of the LDM71 series are designed for measurements of moving targets. The sensor is characterized by a high output frequency of up to 40 kilohertz. Typically, the distance sensor is used to detect objects in industrial automation or for monitoring defined areas in transport and logistics applications. The compact laser distance sensor is offered as a ready-to-use device with industry standard IP67 proof housing. For OEM partners we offer this sensor as LDM72 series laser distance sensor module for integration into customer-specific sensor and automation systems.

Value Invisible measuring beam: 905 nm
Measuring reflective surfaces with 10% reflectivity: 70 m
Measuring accuracy: 60 mm / 100 mm (for ranges 1 m ... 70 m)
Measuring frequency: - Up to 40 kHz
Eye safe: - Class 1 laser
Weight: - 140 g
Power supply: - From 10 VDC to 30 VDC
Measuring functions (excerpt):
User-specific parameterization, switching outputs

Jenoptik LDM71 Datasheet:




Jenoptik LDM72 Datasheet:
