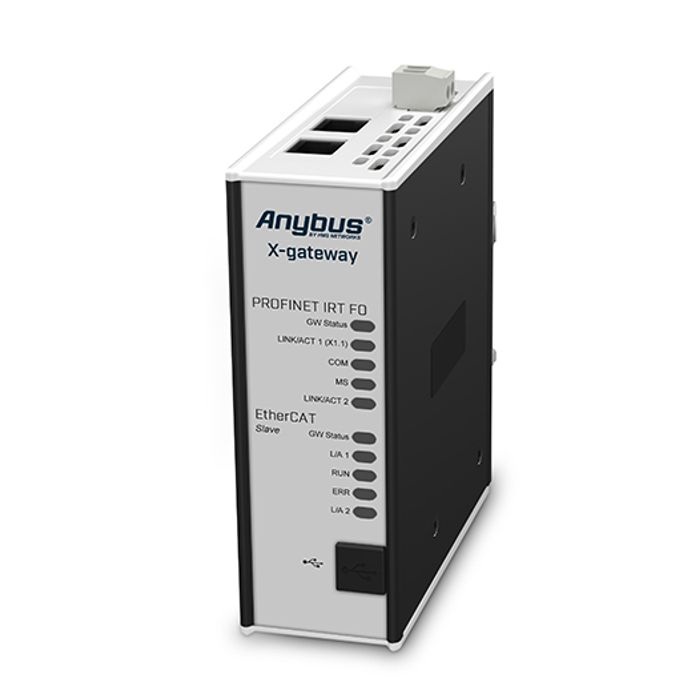

Anybus X-Gateway
Model: AB7970
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Connectors
Characteristics
Anybus X-Gateway helps you easily connect industrial networks and PLC systems to achieve a stable flow of information throughout the factory.
You can quickly transfer I/O data between two similar or dissimilar networks, eliminating the need for complex calculations for PLCs.
Anybus X-Gateway is tested and verified by all major PLC manufacturers such as Siemens, AB, Schneider Electric, Mitsubishi, ABB, Omron, Hitachi, Beckhoff, Phoenix Contact, Bosch Rexroth and many more.
Specifications
技術規格說明
| Dimensions (L•W•H) | 114 x 44 x 127mm or 4,49 x 1,73 x 5,00″ |
| Weight | 400g or 0,880 lbs |
| Operating temperature | -25 to +65 °C or -13 to +149 °F |
| Storage temperature | -40 to +85 °C or -40 to +185 °F |
| Power supply | 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector |
| Current consumption | max. 400mA (Typical 200mA) |
| Enclosure material | Aluminium and plastic |
| Installation position | Vertical / Flat* |
| Galvanic isolation | YES, on both BUS/Ethernet side |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | DIN-rail (EN 50022 standard) |
| I/O configuration | via USB port with Anybus Configuration Manager software |
| Certifications | CE, CULUS, RoHS |
