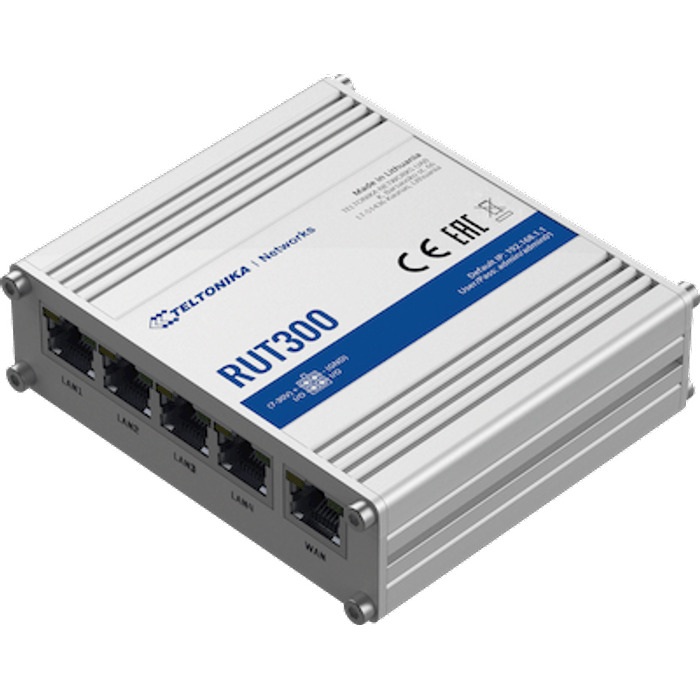

industrial router RUT300
Model: RUT300
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Industrial Instruments & Equipment
Characteristics
// The RUT300 is a small but powerful Ethernet router ideal for challenging industrial networking tasks as well as general networking applications.
// Five Ethernet ports, two configurable digital in/outs, and a USB port make it easy to connect a variety of devices to the Internet.
// Preconfigured firewall for instant security and multiple top VPNs.
// Passive PoE helps reduce deployment complexity.
// Economical yet feature-rich industrial device with all the advantages of RutOS and Remote Management System (RMS).
Specifications
Routing | Static routes, Dynamic routes |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, NAT rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | Wired WAN options, each of which can be used as an automatic Failover |
Load balancing | Balance Internet traffic over multiple WAN connections |
SSHFS | Possibility to mount remote file system via SSH protocol |
