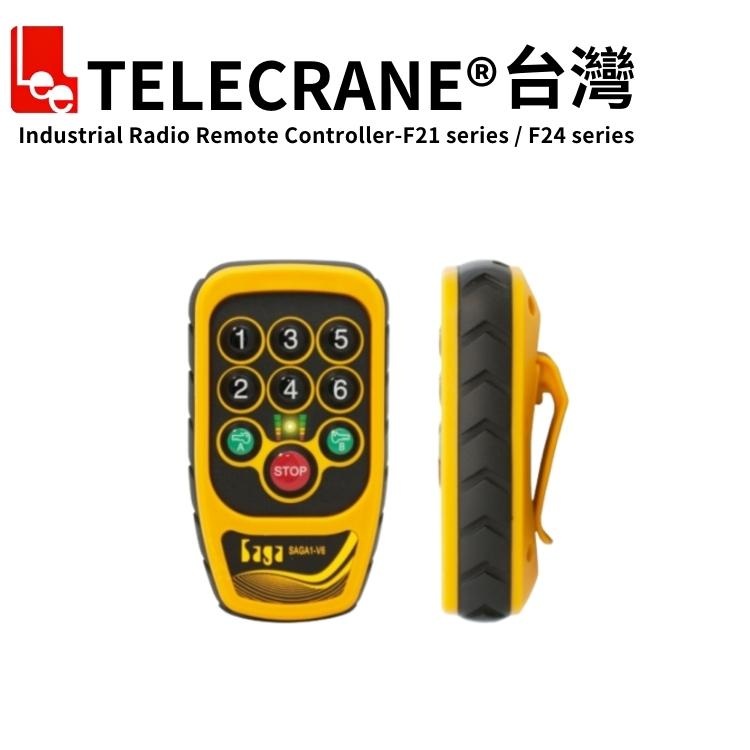

SAGA1-V6 Plus Industrial Tailgate Remote Controller
Model: SAGA
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Wireless Remote Control for Hydraulic/Vehicle Tailgates
Compact, Lightweight, and User-Friendly with Exceptional Durability
Fully Automatic Frequency Hopping
Button Function Customization
Receiver Button Panel
IP66 & IP67 Waterproof/Dustproof Rating
Specifications
- SAGA1-V6 industrial radio remote control is specially designed as a wireless radio remote control for vehicles and other mobile devices, such as vehicle winches for trucks and tow trucks, hydraulic equipment, etc. It is also suitable for control systems such as gate control and fences.
- Smart Radio Communication Technology: Advanced radio communication technology, users can monitor the working status between the transmitter and receiver at any time
- Auto Channel Selection (ACS): Quickly find the appropriate channel according to the site conditions, and achieve a near-uninterrupted operating environment
- Password Boot: Can set security password lock, can effectively control the authority of the operator
- Wireless Remote Pairing: The raw data in the machine can be transferred wirelessly and transferred to another new transmitter in just a few steps.
- Button Function Modification: The transmitter button can be customized to modify the button function or frequency through computer software according to different needs
- Receiver Button Panel (upgrade to SAGA1-V6 plus): The button panel is provided on the receiver to prevent the transmitter from being broken or lost and other special circumstances
- Normally Open/Normally Closed (NC/NO) Relays: The receiver relays are all NC/NO relays, which can meet the needs of all equipment and applications
- Waterproof/Dustproof Level: Transmitter: IP 67 rating (dustproof and water immersion 1 meter); Receiver: IP 66 rating (dustproof and high pressure water spray)
- Pre-Wired Output Cables: Pre-wired cables make wiring installation easier, faster and simpler
Technical Specifications:
- 6 function keys + 1 start key + 1 stop key
- Frequency band: 868 MHz / 915 MHz (frequency may vary by region)
- Number of relays: 8 functional relays + 1 total stop relay
- Relays: Normally open/normally closed (NC/NO) relays, loads up to 20 A (amperes)
- Low power consumption, using only 2 AA batteries, can be used for about 3 months
- Receiver power supply: DC 10~42 V
- Transmitter response time: <0.1 seconds
- Antenna: built-in antenna
- LED power indicator: Three-segment mains voltage display
- Remote control distance: about 100 meters
- Operating temperature: -45°C ~ +80°C
- Shell structure: glass fiber + nylon
TRANSMITTER:
- size: 112 x 62 x 39 mm
- Weight: about 135 g (without battery)
- Power supply: 2 AA batteries, alkaline/rechargeable batteries can be used
RECEIVER:
- Dimensions: 130 x 146 x 64 mm
- Weight: about 490 g (without button panel); 525 g (with button panel)
- Power supply: 10~42VDC
