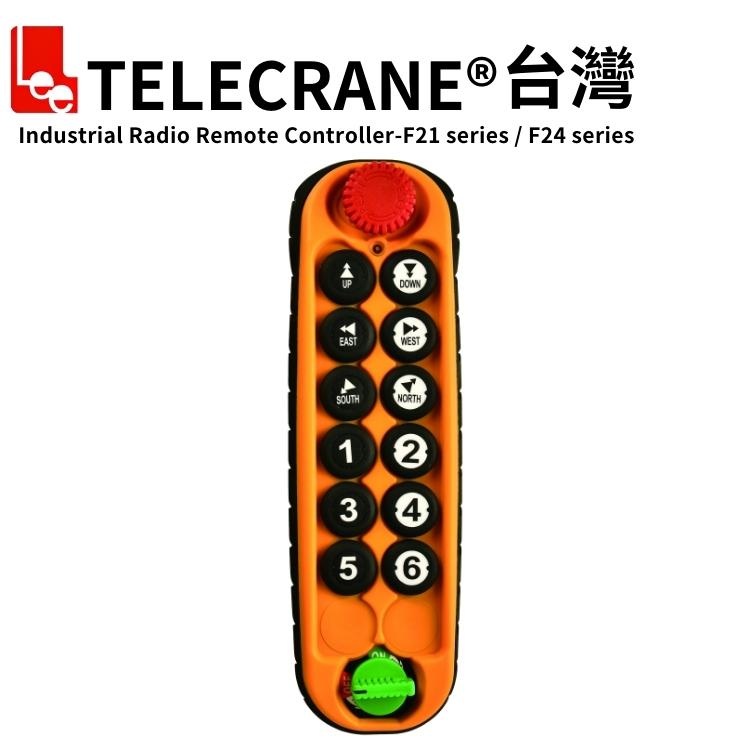

TR1 Industrial Wireless Remote Controller (Crane Remote Controller)
Model: TeleRanger
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
(1) Full-function e-card, plug and play.
(2) Excellent interference avoidance technology - TDFS.
(3) Eliminate unauthorized control.
(4) Patented receiver.
(5) Superior waterproof and breathable casing.
(6) Expandable relay board.
(7) The transmitter is also a copier.
(8) Built-in antenna.
(9) Lightning-resistant power supply.
(10) Diverse battery options.
(11) Freedom to plan and use functions.
(12) Adjustable remote control distance.
Specifications
- Full Function E-card, plug and play: Both the receiver/transmitter use the same interchangeable e-card, and all functions and settings are memorized. When the receiver/transmitter needs to be replaced or added, the original e-card can be used to plug and play.
- TDFS Excellent interference avoidance technology: TDFS (Teleranger Dynamic Frequency Selection) automatic channel change technology can detect the live spectrum and automatically switch to a clear channel to reduce channel interference.
- Prevent unauthorized manipulation: Powerful real-time security code (SRC) prevents the code from being copied, effectively preventing thieves or higher-level malicious manipulation.
- Patent Receiver: The large LED power indicator light greatly improves the viewing angle, and all circuits are installed on the upper cover, which improves the convenience of installation and maintenance.
- Predominant water-proof breathable shell: The receiver/transmitter are equipped with PTFE membranes with internal and external equal pressure functions to achieve the superior effect of air permeability but impermeability, and effectively improve the negative pressure water ingress caused by the pressure difference after sun exposure.
- Expandable Relay Board: When you need more power output, you can install an expansion relay board in the large receiver box, no need to buy receivers.
- The transmitter is the copy machine: The spare e-card can be duplicated on site without purchasing an additional burner.
- Built-in Antenna: The receiver/transmitter are all built-in antennas, which have the effect of shock resistance, can also avoid the loss of the antenna during operation, and cover a wider radio coverage area.
- Lightning Resistant Power Supply: Two voltage ranges, pluggable and optional. The anti-lightning conduction ability is better than most commercially available equipment, and it can overcome the unstable power supply and high surge interference on site.
- Diverse battery options: Any rechargeable or disposable AA batteries can be used, and commercially available standard RCR-V3 lithium batteries are also suitable.
- Free planning and use Function: Powerful software functions provide great flexibility to meet most industrial applications. TeleRanger is available on Android (smartphones) and Windows.
- Adjustable remote control distance: The transmitting power of the transmitter can be adjusted to extend battery life.
Transmitter Specifications:
- Button: 12 single/double speed action points
- Frequency: 433/434 MHz
- Transmitting power: <10 mW
- ID identification code: 4.3 billion groups (32 bits)
- Working temperature: -30°C~85°C
- Housing Material: Reinforced Plastic with Fiberglass
- Operating distance: 100 meters
- Protection class: IP67
- Power supply: AA battery *4
- Dimensions: 222 x 65 x 49 mm
- Weight (without battery): 350 g
Receiver Specifications:
- Expansion relay board: yes
- Working temperature: -30°C~85°C
- Housing Material: Reinforced Plastic with Fiberglass
- Protection class: IP66
- Power supply: High voltage: 28~456VAC; Low voltage: 10~60VDC
- Dimensions: 255 x 117 x 130 mm
- Weight (without cables): 900 g
TR1-12S/12D , TR1-10S/10D , TR1-8D ,TR1-8S ,TR1-6S/6D , TR1-4S/4D ,TR1-2S/2D
Follow us: “Facebook: Telecrane Taiwan”,“ Youtube: Telecrane Taiwan”
