Honeywell DDC system

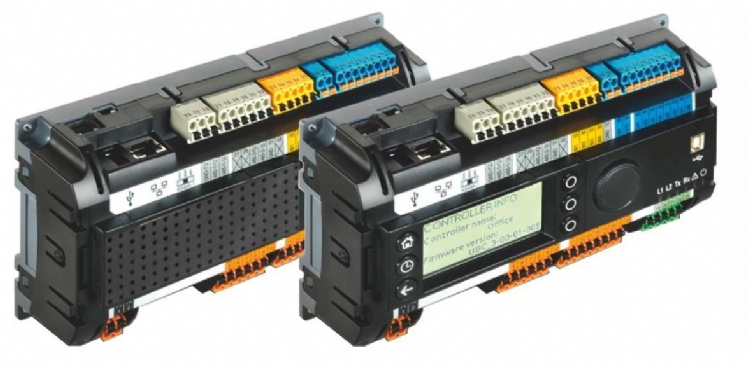

Model: MVCweb Control System

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems



Online Inquiry





Characteristics



Reduced the total installed cost:
Existing standard Ethernet/LAN infrastructure is used for communication between MVCweb controllers, 3rd-party BACnet® controllers, and BACnet® front-ends. Costs are
further reduced by the flexible and optional use of onboard I/Os and Panel Bus I/Os.

Universal operation:
Via Internet browser, MVCweb can be operated from any
place, from any PC connected to the (MVCweb) network!
An integrated web-server allows local and remote
operation by standard browsers.

Reduced cost for service, operation and maintenance:
Maintenance or upgrade of Operator Interface Software is
superfluous because it resides in MVCweb, itself (single-
source principle).

Vendor independence:
Communication is based on the following international
standards: BACnet/IP (ISO 16484-5); BACnet MS/TP (ISO
16484-5); LONWORKS (ISO 14908); Modbus RTU Master;
M-Bus (EN 1434-3).

Trending: 100 datapoints can be trended.

Fast application control:
Four selectable control loop priorities (multitasking),
selectable control loop cycle times, and event-driven
switching tables allow for tailored and highly effective
applications control.

Reliable control performance:
Embedded LINUX ensures reliable, independent, and
secure operation, especially for systems with Internet
access.

Embedded e-mail/SMS alarming:
Configurable e-mail alarming options allow alarms to be
sent (via network or Internet-DSL connection) to e-mail
accounts and thus also to mobile phones.

Honeywell CARE tool:
Allows re-use of existing applications and application
macros, enables highly effective application generation,
and supports online application debugging.

Flexible mounting options: Mounting onto wall or onto
panel back wall, into panel door, onto panel rail, and into
sub-panels (fuse boxes).
