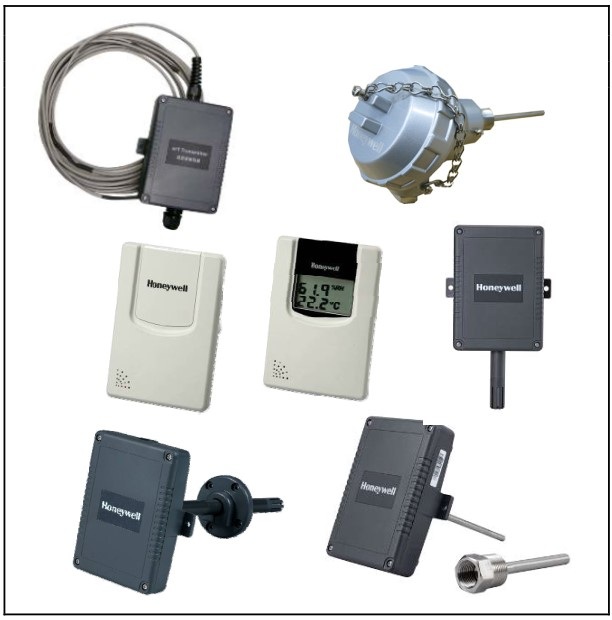

Honeywell Humidity&Temperature Sensor
Model: HT series
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
420mA, 0~10VDC or Mod-bus output for both
humidity and temperature
Option for resistance temperature sensor
LCD display option for both humidity / temperature
Various mounted types selectable
Temperature range is selectable in one model
High reliability & accuracy
Wide sensing range
Rapid response
Specifications
Relative Humidity
Sensor Element: Capacitive Polymer with CMOS
processes
Measurement Range: 0~100%RH
Signal Output: 4~20mA ,0~10VDC or Mod-bus
Accuracy: ±2%RH(20J, 20~80%RH) ±3%RH(20J, 20~80%RH)
Long Term Stability: 1%RH; typical at 50% RH in five years
Temperature
Temp Sensor: NTC20k, Pt100 , Pt1000
Measurement Range: 0~50J, 0~100J, -50~50J
Range selected by Jumper
(0~50J as default )
Signal Output: 4~20mA , 0~10VDC or Mod-bus
NTC20k, Pt100, Pt1000
Accuracy: ±0.3J at 25J
for NTC20k sensor
±0.2J at 25J
for Pt100, Pt1000 sensor
±0.2J (0~50J)
With transmitter
Long Term Stability: ±0.25J per year
Power Supply: 24 VAC/VDC ±10%
Current Output Load: 500 Ohm Max
Working temperature:
Room type -30J ~ +70J
Duct type -50J ~ +70J
5% ~ 95% RH without condensation
Certification: Report No. HA110097
Housing Material: Plastic (ABS)
Flame retarded acc. to UL94-V1
Protection Standard
Room type IP30
Duct, OSA or Immersion IP65
Calibration: Factory calibrated
