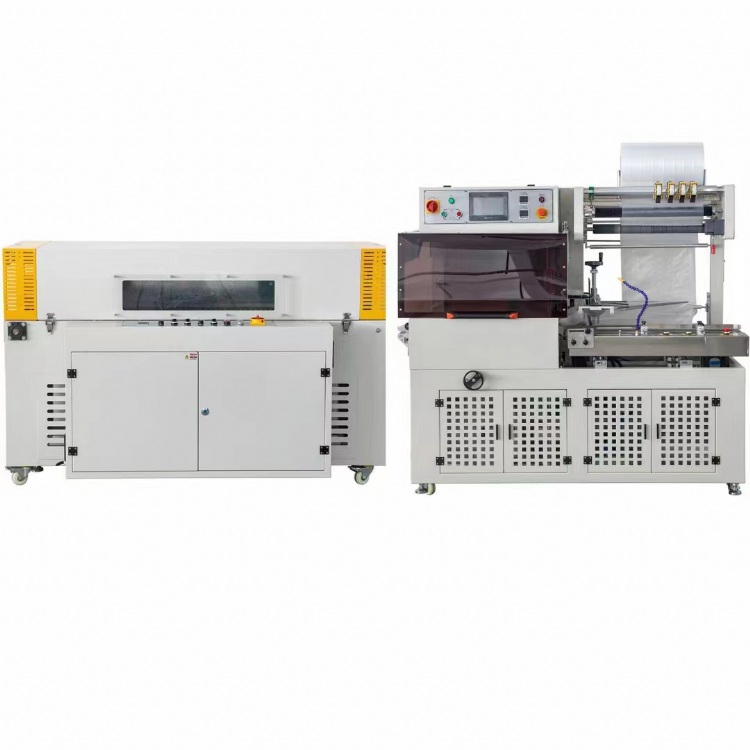

L-Bar Shrink Wrapping Machine
Model: 4515Q
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines
Characteristics
Automatic L-Sealers providing excellent performance and value for money. The complete system consists of a Fully-Automatic L-Sealing machine and Heat Shrink Tunnel with shrink wrapping speeds of up to 20-25 packs per minute. An automatic conveyor feeds the product into the film. The machine then measures the length of the product to allow the sealing blade to operate automatically to produce the sealed bag. The film, which is trimmed off during the packaging process, is automatically wound up on the waste film take-up reel. It is then automatically conveyed into Heat Shrink Tunnel for excellent shrink results all around the package.
Specifications
|
Model |
SY-4515Q (L Sealer) |
SY-4525(Shrink Tunnel) |
|
Machine dimension |
L1800×W850×H1500mm |
L1500×W450×H250mm |
|
Packing size |
L+H≤450/W+H≤350mm (H≤100mm) |
|
|
Packing speed |
1~25Pcs/min |
|
|
Power |
1.35KW |
10KW |
|
Power supply |
220V/ 50/ 60Hz , 1Phase |
380V 50/ 60Hz , 3 Phase |
|
Air pressure |
5-7 kg/cm³ |
/ |
|
Material |
POF/PE |
|
