Side Sealer & Shrink wrapping machine
Model: HP-50
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Shrinkable Packaging Machine
Characteristics

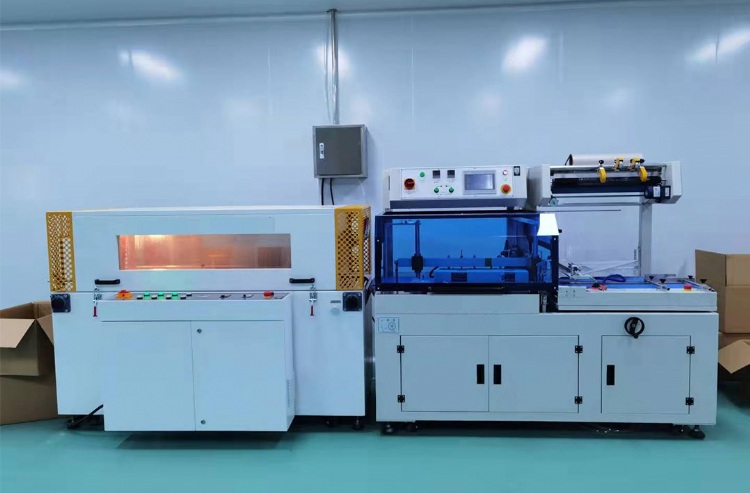

Automatic Side-Sealers and shrink wrapping machine provide excellent performance and value for money. The complete system consists of a Fully Automatic Sealing machine and Heat Shrink Tunnel with shrink wrapping speeds of up to 30-35 packs/min. An automatic conveyor feeds the product into the film, the machine then measures the length of the product to allow the sealing wheels to operate automatically to produce the sealed bag. The film, which is trimmed off during the packaging process, is automatically wound up on the waste film take-up reel. It is then automatically conveyed into Heat Shrink Tunnel for excellent shrink results all around the package. Side Sealer can run random products of infinite length.
Specifications
Model型号 |
HP-50 |
HP-5030LW |
Packing size包装尺寸 |
L, Unlimited,W+H<400mm H<170mm |
/ |
Packing speed包装速度 |
1-30pics/min |
/ |
Power功率 |
3KW |
16KW |
Power supply输出电压 |
3& 380V 50/60Hz |
3&380V/50Hz |
Machine dimension机器尺寸 |
L1800*W1000*H1536mm |
L1800*W1050*H1300mm |
Belt size皮带尺寸(宽度) |
前front:375mm 后back:390mm |
/ |
Air pressure 气压 |
6-8KG/cm2 |
/ |
Material |
POF/PE |
/ |
