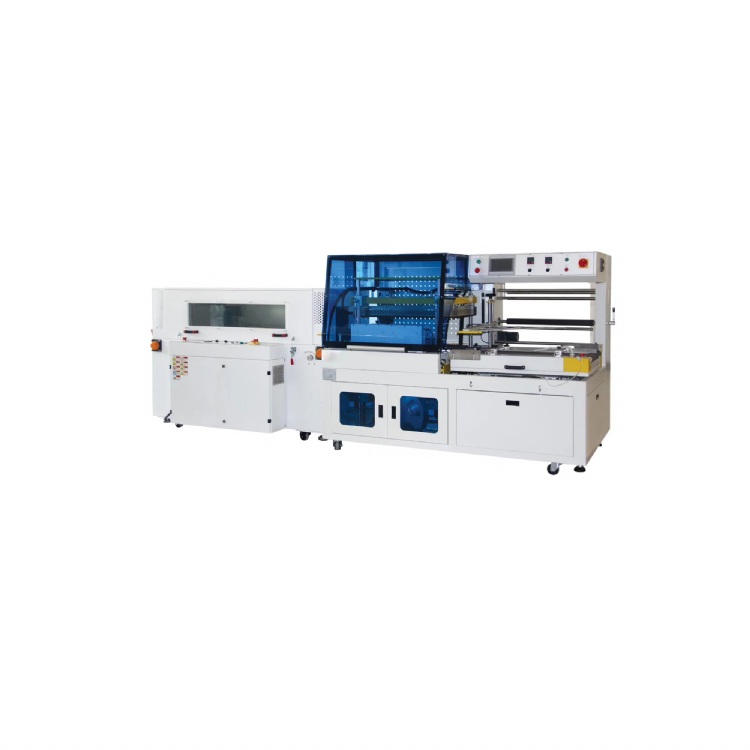

Vertcal L-bar sealer & Shrink Wrapping Machine
Model: HP-5545DA
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Shrinkable Packaging Machine
Characteristics
he fully automatic vertical L-type sealing & shrinking packaging machine is a high-speed film wrapping machine specially designed for fine production. Widely used in packaging of food, electronic products, cosmetics and other industries. The equipment is easier to operate and the user experience is good. The machine can automatically complete the films feeding, wrapping, sealing and cutting to ensure that the sealing line is in the middle position.Automatic film feeding, thin sealing line, suitable for POF film and cross-linked POF film.The packaging speed is 15-35 pieces per minute, and the work efficiency is high.
Specifications
Model型号 |
HP-5545DA |
HP-5030LW |
Packing size包装尺寸 |
L+H <450,W +H < 350mm,H<170 |
/ |
Packing speed包装速度 |
1-30pics/min |
/ |
Power功率 |
<4KW |
16KW |
Power supply输出电压 |
1& 220V 50/60Hz |
3&380V/50Hz |
Machine dimension机器尺寸 |
1950*1050*1550MM |
L1800*W1050*H1300mm |
Belt size皮带尺寸(宽度) |
前front:375mm 后back:390mm |
/ |
Air pressure 气压 |
6-8KG/cm2 |
/ |
Material |
POF/PE |
/ |
