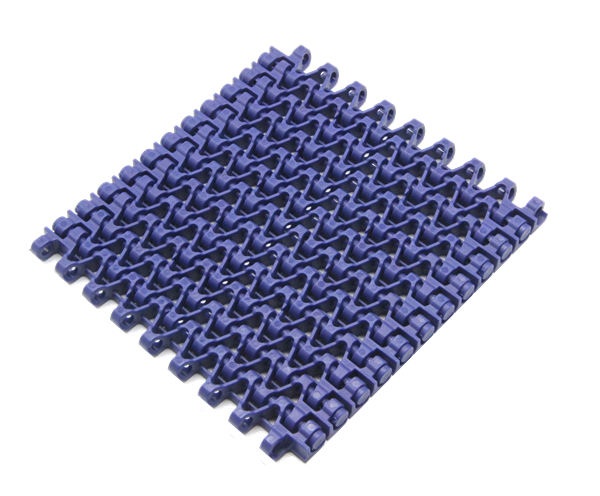

Specifications

● Open hinge.

● Stiff 0.5" Flush Grid design.

● 70% open contact area; largest opening 5x3.3 mm (0.2"x0.13").

● Contact Path Conveyor for precise belt measurements and stock status before designing equipment or ordering a belt.

Remark:

Real Conveyor Modular Belts widths are in most cases 0.1% to 0.3% smaller.

For PP material up to 750 mm (30") -3 mm to 0 mm and -0.4% to 0% for wider belts.

For POM material up to 750 mm (30") -3 mm to 0 mm and -0.4% to 0% for wider belts.

For PE material up to 750 mm (30") -3 mm to 0 mm and -0.4% to 0% for wider belts.

The nominal tensile strength is valid for 21 °C. The admissible tensile force depends on the operating temperature near the drive sprockets. Within the temperature range allowed, the admissible tensile force may vary from 100% to 20% of the nominal tensile strength.
