Specifications

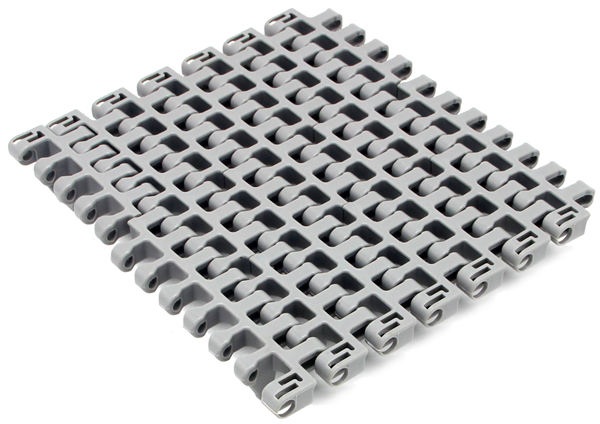

The Radius Flush Grid Modular Belt is designed to excel in both straight and curved conveying applications, thanks to its collapse factor of 2.2. This allows the belt to navigate tight turns smoothly while maintaining stability and product alignment, making it highly versatile for a variety of conveyor systems.

53% open contact area; largest opening 6x12.5 mm (0.24"x0.49").

With a 53% open contact area and the largest opening measuring 6x12.5 mm (0.24"x0.49"), this belt offers excellent surface coverage while allowing for efficient drainage and air circulation. The optimized open area ensures that the belt can handle a wide range of products, from small parts to larger items, without compromising performance.

Excellent for cooling and draining.

The Flush Grid Modular Belt is particularly well-suited for applications that require effective cooling and draining. The open grid design facilitates rapid heat dissipation and water drainage, making it ideal for food processing, pharmaceuticals, and other industries where hygiene and temperature control are critical.
