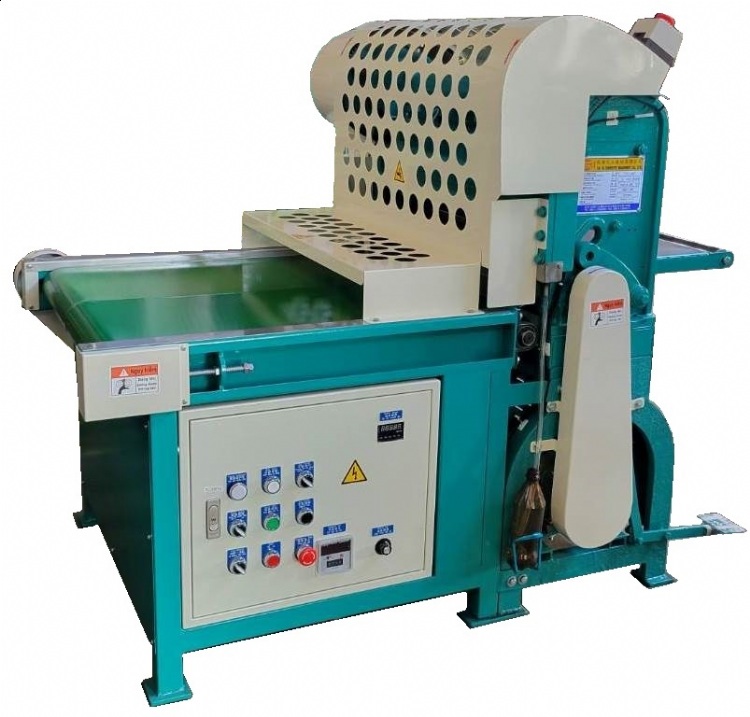

Electronic Rubber Sheet Cutting M/C
Model: TY-107
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Rubber Cutters
Characteristics
1. This machine adopts a crankshaft design to increase the cutting power. It can adjust the required length and size according to your needs within the length range of 10cm~infinite cm.
2. The cut materials are sent out by conveyor to prevent the operator from accidentally entering, and avoid the accumulation of cut materials, which will stick to each other and increase the working hours, and improve the efficiency.
3. The cutting tools can be adjusted and replaced by themselves, extending the service life and reducing costs.
4. The actuating mechanisms are all hidden or equipped with protective plate metal covers to ensure the safety of operators.
5. The cutting tool uses Japanese special steel, strong structural steel, and can be used on both sides.
6. The manual central lubrication system, waste oil centralized system, feeding rack, and feeding wheel are made of stainless steel to facilitate daily inspection and maintenance.
7. Maintenance is easy, and non-professionals can also perform basic maintenance.
8. This machine is a combined model and can be connected to the TY-101 automatic water sweeping and powdering machine and the TY-106 refrigerated rubber sheeting unit to operate together, so that the production line can be completed in one go.
Specifications
Horsepower:3HP
Working width:76cm
Mechanical size:158*115*133cm
