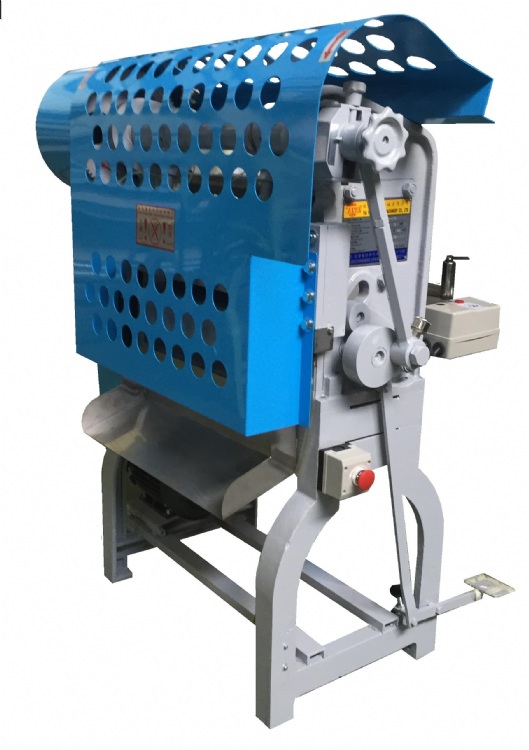

Rubber Slitting Cutting M/C
Model: TY-108
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Rubber Cutters
Characteristics
Function: The TY-108 type strip cutting machine is a special machine used to add vulcanization to the rubber material and cut it into strips after cooling. The rubber material must be cut into the size of the shoe mold before hydraulic molding to match the concave and convex diameter of the shoe mold. Proper cutting can facilitate the processing and molding of rubber while causing less waste.
Features:
1. Crankshaft design increases cutting power.
2. The crankshaft, slide plate and manual central oiler system are designed to facilitate
daily inspection and maintenance.
3. Cutting angle design, the material can be cut smoothly without burrs.
4. The cutting knife uses Japanese special steel, strong structural steel, and can be used
on both sides.
5. The cutting speed or length can be increased accordingly. Maintenance is easy, and non-
professionals can also perform basic maintenance.
6. The stainless steel loading plate, safety net, track frame, voltage stabilizing switch, and
upper and lower feeding wheels are made of stainless steel SUS-304.
Specifications
Horsepower:1HP
Working width:60cm
Mechanical size:79*105*130cm
