Specifications

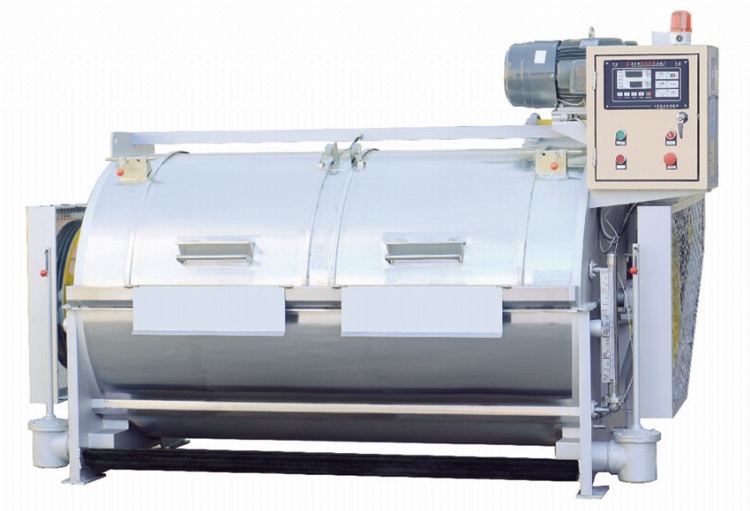

[Industrial Washing Machine] Product Features
1. This machine is a horizontal drum type, with both the inner and outer cylinders made of high-quality stainless steel plates specially designed, which are flat, smooth, corrosion-resistant, and do not damage the fabric.

2. This machine is safe and reliable. The inner cylinder door cover is equipped with a safety locking structure, and the outer cylinder door cover can be set with an electrical interlock safety device according to user requirements: if the door is not closed properly, the machine cannot start. If the door is opened during operation, the machine will immediately stop running.

3. The conveyor system of this machine is transmitted from the motor to the drum spindle through a secondary triangular tape. Smooth operation, no noise, and durable.

4. This machine is equipped with timed control. According to the requirements of the washing process, adjust the time and the machine will automatically shut down.

5. The washing and dyeing dual-use machine series is equipped with a water level gauge and an automatic temperature control system. Users only need to install intake solenoid valves at the ends of the intake pipe and insulation pipe to automatically raise and control the temperature.

6. The washing and dyeing dual-use machine series can use a speed regulating motor or a frequency converter according to user requirements, and automatically adjust the drum speed according to the washing process requirements.
Working principle of industrial washing machine
The industrial washing machine is driven by a motor through a belt to rotate the inner container, and under the action of a timing controller, it rotates forward and backward, driving water and clothes to move in asynchronous motion, causing water and clothes to rub and knead against each other, achieving the purpose of washing. This machine uses a three-phase asynchronous motor or a speed regulating motor (washing and dyeing machine) as the operating force. When the power is turned on, the power indicator light is on, and the three position switch controls inching, stopping, and automatic. The inching indicator light is on when the inching position is on, which can achieve inching for door opening; When in automatic position, the operation indicator light is on. Select the washing time according to the washing process requirements, and the machine will automatically run forward and backward for washing within the specified time.
