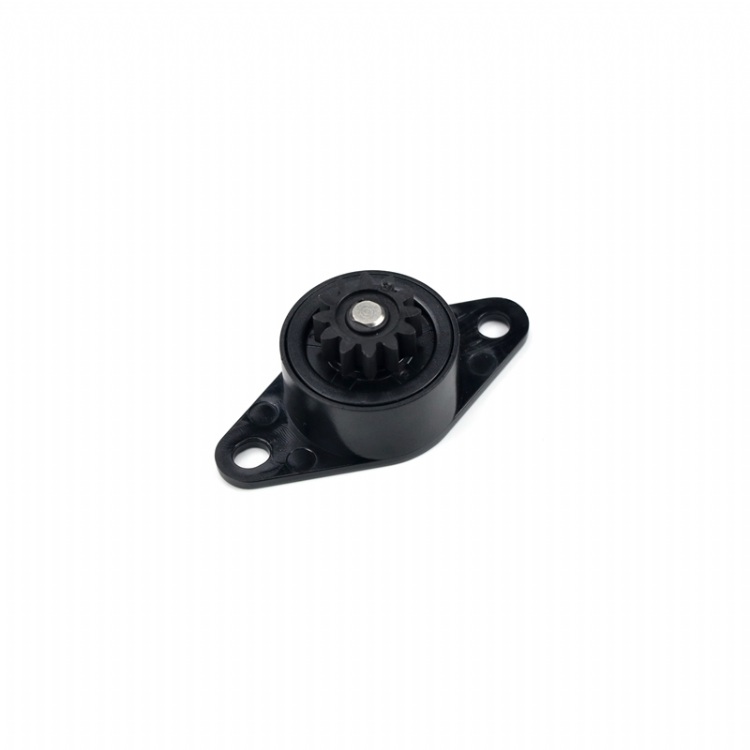

Gear/Rotary Damper RD-T068/V068
Model: Gear/Rotary Damper RD-T068/V068
Category: Machinery Parts and Components / Machinery Parts and Components / Gears
Characteristics
Gear/Rotary Damper RD-T068/V068
Specifications
Gear/Rotary Damper RD-T068/V068
Characteristics
SOC Free, Screw, two-way, One-way,No angle limit
Component Parts
Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: VMQ
Oil: silicone oil
Durability
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
Technical Specifications
|
Type |
12 |
/ |
/ |
/ |
|
Number of teeth |
12 |
/ |
/ |
/ |
|
Tooth width |
|
|
|
|
|
Product height |
19 |
|
|
|
|
Module |
1.05 |
/ |
/ |
/ |
|
Pitch circle diameter |
Φ14.7 |
|
|
|
|
Pressure angle |
20° |
/ |
/ |
/ |
|
Material |
POM |
/ |
/ |
/ |
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above.
Gear dampers are one of Teao core products, renowned for their precision engineering and outstanding performance. We can offer customized versions in any desired torque within the standard range.
Operating on the principle of a precisely designed gear system combined with damping oil, gear dampers control the opening and closing speed of objects, ensuring smooth, noise-free movements.
