Specifications

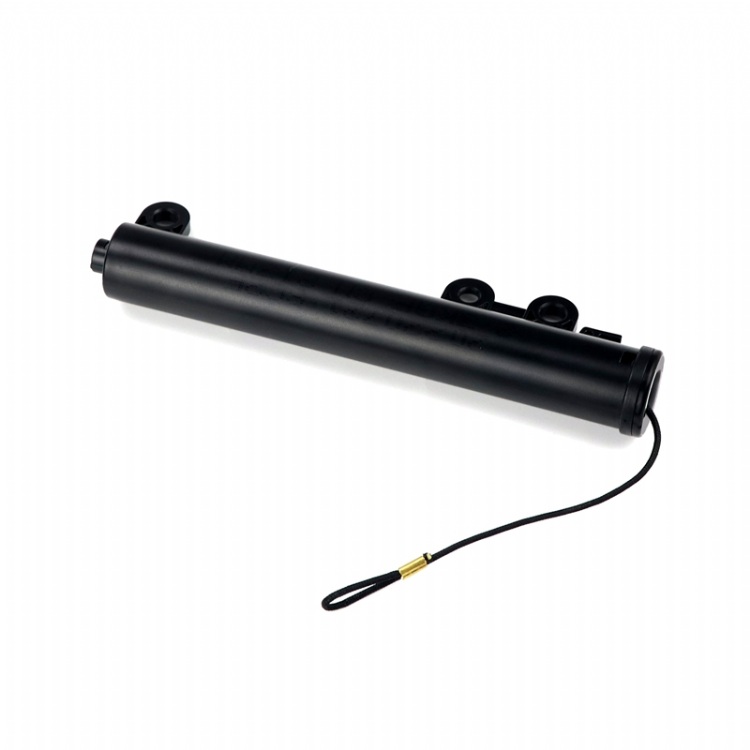

Air Damper RD-V118

Characteristics

SOC Free, For Glove box, one-way

Component Parts

Less honorary seat: PC

Upper cover: PC

O-RING: Oil-emitting silicone

Tie rod: PP

Technical Requirements

1. Damping and Cushioning Direction: V - Unidirectional

2. Torque Testing Standard: 23±2°C, speed of 2400 r/min

3. Torque Range: 1.0-4.5 kgf.cm

4. Effective Damping Stroke: 60mm

5. Static High and Low-Temperature Requirement: -40°C to 90°C

6. Damping Durability Requirement: >20,000 cycles

Air dampers employ airflow to create damping effects. its working principle is to generate torque by controlling the exhaust volume of the exhaust hole, for the handpiece to provide a cushioning resistance, so that the handpiece slowly open, the product is used more rhyme and beauty, to improve the product grade.
