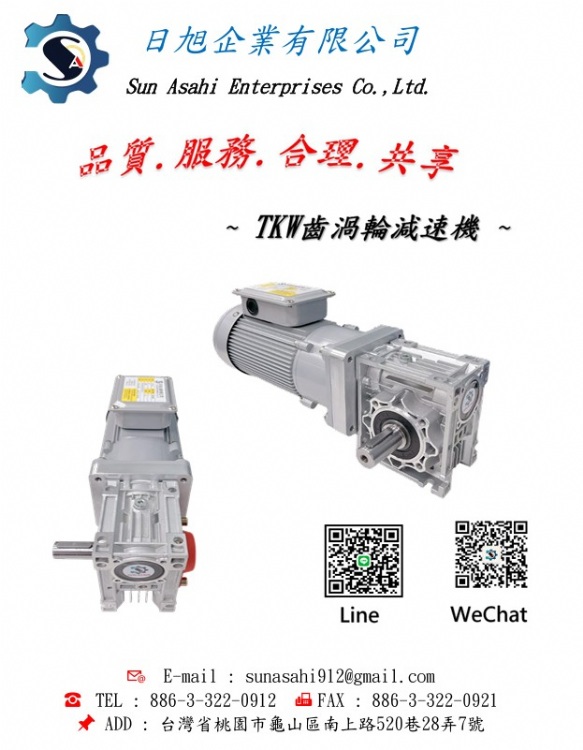

gear + turbine reducer
Model: TKW high reduction ratio 0.1KW ~ 0.75KW
Category: Machinery Parts and Components / Machinery Parts and Components / Gear Motors
Characteristics
"motor"
1. Motor coil - pure copper wire, F-pole insulation grade material.
2. Motor aluminum shell - high-precision aluminum extrusion and drawing mold, surface high-temperature powder coating treatment, acid and alkali resistant.
3. Motor bearings - high precision bearings to increase product life.
4. Housing + coil - processing concentricity within 0.02mm to improve product service life.
5. Axis + rotor - processing concentricity within 0.01mm, reducing vibration sources during operation and increasing service life.
6. Motor appearance - 100W-400W, same frame, same size, heat sink, exquisite quantitative design.
Reducer
1. Gear material - Made of imported steel such as SCM220, SCM440, SCM415, S45C, etc.
2. Gear processing - Special tool full gear skiving processing with stable quality, low noise and high transmission efficiency.
3. Gear oil - lubricating oil, made of imported molybdenum disulfide, high temperature resistance, good lubrication effect, permanent oil change and maintenance-free.
4. Gearbox - The gearbox is die-cast and reinforced with good texture. Beautiful appearance.
5. Appearance - Surface treated with high temperature powder coating, acid and alkali resistant.
6. Oil seal - built-in gear box design, more dust-proof, acid and alkali resistant.
Turbine reducer
1. Turbine material - pure copper, 12-2 tin bronze.
2. Turbine - Special tool processing quality is stable, low noise, high strength.
3. Turboshaft - 20CR alloy steel, carburized and ground, high strength and wear resistance.
4. Lubricant - High temperature resistant mineral engine oil.
5. Turbine case - Standard die-casting dimensions conform to international IEC related dimensions.
6. Appearance - The surface is treated with high temperature paint, acid and alkali resistant.
7. Oil seal - high temperature and wear resistant seal.
8. Bearings - High speed precision bearings NSK grade.
Suitable for - solar remanufacturing machines, solar tracking systems, low speed transmissions
