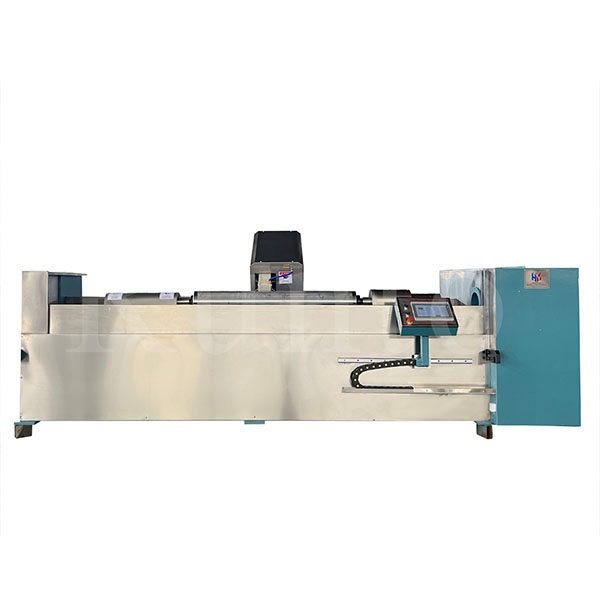

Chrome Polishing Machine
Model: HYXY-008
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
Details:
Gravure Cylinder Chrome Polishing Machine is a new generation of fully automatic CNC chrome polishing machine developed on the basis of foreign advanced technology, combined with many years of Rotogravure cylinder making machinery experience and modern automatic control technology. The utility model has the advantages of strict structure, stable work, high efficiency and convenient operation etc.
Specifications
Product Introduction：
Gravure Cylinder Chrome Polishing Machine it is used for polishing the surface of the chrome-plated gravure roller after electronic engraving or chemical etching. To achieve smooth and bright "net" pattern on the chrome layer surface, to ensure the printing quality of the plate roller.
1.The water flow trough is between the front and rear guides, and there is a protective cover to prevent water.
2.The spindle and tailstock are welded from thick steel plates.
3.All electrical components in Gravure Cylinder Chrome Polishing Machine can be specified by the customer.
4.It is welded from steel plates and then annealed at 650℃, which is safe and environmentally friendly.
5.The linear guides and ball screws are calibrated by laser autocollimators and lubricated by automatic oiling systems.
Product Advantage
Gravure Cylinder Chrome Polishing Machine:
A.Easy to operate
With Centralized touch display panel operation, pressure display, roll speed display, polishing head reciprocating times display. Chrome-plated cylinder polishing machine All the parameters could be set and adjusted according to the demands.
B. Good finish
1) The vibration frequency of the polishing head is adjusted by frequency conversion; the pressure is adjusted by rotogravure cylinder which could satisfy all required vibration frequency and pressure for different crafts.
2)The moving of cylinder making chrome polishing head adopts linear guide rail and gear rack drive structure, so that the advance and retreat error is kept about 0.02 mm.
3)High precision spindle and bearing in gravure cylinder polishing machine ensure the spindle smooth rotation with high precision, variable frequency stepless speed regulation in order to meet the speed needs for different processes.
C.Tailstock jacking and automatic locking, foot switch easy to operate.
D.High Automation
It is controlled by German Siemens (Japan Mitsubishi) PLC, China chrome polishing machine for gravure cylinder manufacturers which realizes the automatic control of Rotogravure Chrome Surface Polishing Grinding Machine. The inverter adopts imported frequency converter, which greatly improves the service life of the whole machine.
