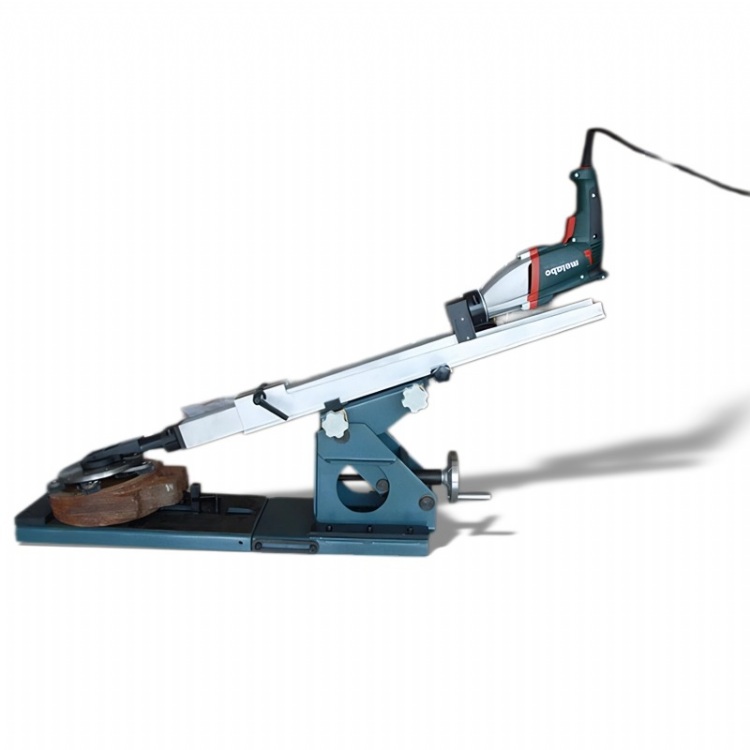

Portable Globe Valve Lapping and Gringing Machine
Model: M-200
Category: Automatic/Industrial Machines & Equipments / Pipe & Tube Making Machines / Pipe & Tube Cut-Off Machines
Characteristics
M-200 Valve Grinding Machine Overview
M-200 Valve Grinding Machine Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Available in various field work
Applicable in grinding gate, check valves and flanges made of various materials
Grinding automatically after the installation is adjusted well
Reasonable structure design, perfect Metabo motor and high-quality imported grinding materials contribute to the grinding 3-10 times as fast as the manual one
Stepless and adjustable speed, stable power transmission and accurate lapping make the sealing face in complete contact.
M-200 Valve Grinding Machine Technical Parameter
Grinding scope: DN80~200
Motor power: 1300W
Rated Voltages: 220V
Dimensions for the minimum opening of the valves: B>45mm
Allowed adjustable length: L≤600mm
Operating weight: 70kg
M-200 Portable valve grinder User's Manual
Specifications
M-200 阀门研磨机 概述
M-200 阀门研磨机 轻便、紧凑、易于携带
分体式组件使安装变得简单快捷
可用于各种现场工作
适用于各种材料制成
的研磨闸门、止回阀和法兰 安装调整好
后自动研磨合理的结构设计，完美的Metabo电机和优质的进口研磨材料，使研磨速度是手动的
3-10倍。��级可调速度，稳定的动力传输和准确的研磨使密封面完全接触。
M-200 阀门研磨机 技术参数
研磨范围 ： DN80~200
电机功率： 1300W
额定电压： 220V
阀门最小开口尺寸： B>45mm
允许可调长度： L≤600mm
工作重量： 70kg
M-200 便携式阀门研磨机用户手册
