Portable Valve Grinder/Grinding Machine
Model: M-600
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Grinders and Crushers
Characteristics
Manufactuer of valve Grinding machine from China-Metals Kingdom Industry Limited

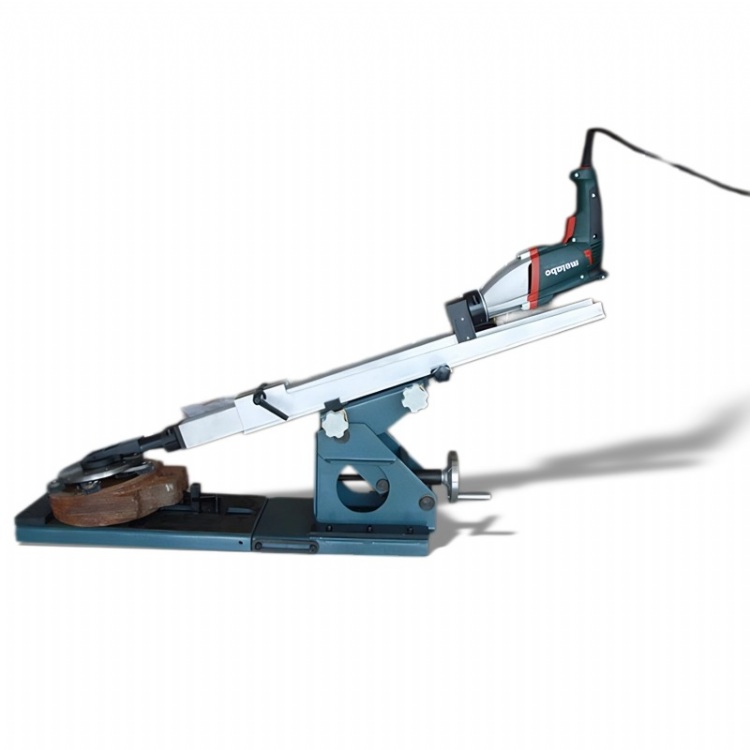

M-600 Portable Valve Grinding Machine
1.Characrer:
M-600 portable valve grinding machines with high efficiency, being easy to carry and being easy to operate, can repair the valve sealing surface in the pipeline scene.
2. Technical Parameter
a) Grinding diameter: Dia 200-600mm
b) The electrical power: 1300W
c) the greatest adjustment depth: 900 mm
d)Input voltage: 220 V
e) Operating weight: 80kg
f)The smallest broaching size: B = 70mm
Item Models
M-200 M-300 M-300C M-600
Grinding Range (mm) DN80-200mm (3"-8")
Grinding Plate optional DN90-300mm (3"-12")
Grinding Plate optional DN100-400mm
(4"-16") Grinding Plate optional DN200-600mm
(8"-24")
Grinding Plate optional
Voltage(V) 220 220 220 220
Power(W) 1300 1300 1300 1300
Frequency(HZ) 50 50 50 50
Max Grinding Depth(mm) 600 650 850 900
Valve sealing face min gap(mm) 45 55 60 70
Gross Weight(kg) 70 75 78 80
Item Models
MZ-150 MZ-250 MZ-900 MZ-1200
Grinding Range(mm) DN 50-150mm
(2"-6") DN90-250mm
(3.6"-10") DN400-900mm
(16"-36") DN600-1200mm
(24"-48")
Voltage(V) 220 220 220 220
Power(W) 1300 1300 1150 1150
Frequency(HZ) 50 50 50 50
Max Grinding Depth(mm) 420 600 1500 2400
Valve sealing face min gap(mm) 38 45 160 180
Gross Weight(kg) 38 50 270 350
M-600 Valve Grinder Packing lists
Items Name quantity remark
1 Big base(with V shaped backup plate) 1
2 Small base(with handle) 1
3 Adjustalbe supporing 1
4 Electric motor(with Connector) 1 German Metabo
5 transfer components 1
6 small grindingdisc components 1
7 big grinding disc components 1
8 NO.1 grinding claws 5 85mm
9 No.2 grinding claws 5 108mm
10 No.3 grinding claws 5 203mm
11 Clamping piece 1
12 drive part for fixed grinding disc 1
13 Emery sheets 60,80,120
50
14 (60#,80#,120#)
American Norton grinding emery paper Each three
15 (80#,120#,320#)Korea grinding emery paper r Each three
16
Double sticky tape,flashlight,scissor, folding ruler Each one
17 (17-19,19-22)solid wrench Each one
18 6mm,5mm,4mm wrench Each one
19 (+,-)screwdriver Each one
20 M8×25 bolt 6
21 M8×20bolt 3
22 M8×70 8.8 sbolt 4
23 operating instruction manual 1
24 certificate of approval 1
25 warranty card 1
abrasive paper 50 PCS free
M-600 Valve Grinder Fixed Grinding Discs Packing list
Item Name Quantity Note
1 Size 1 fixed grinding disc 1 Φ220
2 Sizee 2 fixed grinding disc 1 Φ240
3 Size 3 fixed grinding disc 1 Φ300
4 Size 4 fixed grinding disc 1 Φ350
5 GB70-85 M8×18) 2
6 GB70-85 M6×12 12
Specifications
中国五金工业有限公司
阀门研磨机制造商 M-600 便携式阀门研磨机
1.特点：
M-600 便携式阀门研磨机效率高，携带方便，作方便，可在管道现场修复阀门密封面。
2. 技术参数
a） 磨削直径：直径 200-600mm
b） 电功率：1300W
c） 最大调整深度：900 mm
d） 输入电压：220 V
e） 工作重量：80kg
f） 最小拉削尺寸：B = 70mm
| 项目 | 模型 | |||
| M-200 系列 | M-300 系列 | M-300C 系列 | M-600 系列 | |
| 研磨范围 （mm） | DN80-200mm （3“-8”） 磨盘可选 |
DN90-300mm （3“-12”） 磨盘可选 |
DN100-400mm （4“-16”） 磨盘可选 |
DN200-600mm （8“-24”） 磨盘可选 |
| 电压（V） | 220 | 220 | 220 | 220 |
| 功率（W） | 1300 | 1300 | 1300 | 1300 |
| 频率（HZ） | 50 | 50 | 50 | 50 |
| 最大研磨深度（mm） | 600 | 650 | 850 | 900 |
| 阀门密封面最小间隙（mm） | 45 | 55 | 60 | 70 |
| 毛重（kg） | 70 | 75 | 78 | 80 |
| 项目 | 模型 | |||
| MZ-150型 | MZ-250型 | MZ-900型 | MZ-1200型 | |
| 研磨范围（mm） | 公称通径 50-150mm （2“-6”） |
DN90-250毫米 （3.6“-10”） |
DN400-900毫米 （16“-36”） |
DN600-1200毫米 （24“-48”） |
| 电压（V） | 220 | 220 | 220 | 220 |
| 功率（W） | 1300 | 1300 | 1150 | 1150 |
| 频率（HZ） | 50 | 50 | 50 | 50 |
| 最大研磨深度（mm） | 420 | 600 | 1500 | 2400 |
| 阀门密封面最小间隙（mm） | 38 | 45 | 160 | 180 |
| 毛重（kg） | 38 | 50 | 270 | 350 |
M-600 气门研磨机装箱单
| 项目 | 名字 | 数量 | 备注 |
| 1 | 大底座（带 V 形支撑板） | 1 | |
| 2 | 小底座（带把手） | 1 | |
| 3 | Adjustalbe supporing | 1 | |
| 4 | 电动机（带连接器） | 1 | 德国 Metabo |
| 5 | 转移组件 | 1 | |
| 6 | 小型磨盘组件 | 1 | |
| 7 | 大型磨盘组件 | 1 | |
| 8 | NO.1 磨爪 | 5 | 85 毫米 |
| 9 | No.2 grinding claws | 5 | 108mm |
| 10 | No.3 grinding claws | 5 | 203mm |
| 11 | Clamping piece | 1 | |
| 12 | drive part for fixed grinding disc | 1 | |
| 13 | Emery sheets 60,80,120 |
50 | |
| 14 | (60#,80#,120#) American Norton grinding emery paper |
Each three | |
| 15 | (80#,120#,320#)Korea grinding emery paper r | Each three | |
| 16 | Double sticky tape,flashlight,scissor, folding ruler |
Each one | |
| 17 | (17-19,19-22)solid wrench | Each one | |
| 18 | 6mm,5mm,4mm wrench | Each one | |
| 19 | (+,-)screwdriver | Each one | |
| 20 | M8×25 bolt | 6 | |
| 21 | M8×20bolt | 3 | |
| 22 | M8×70 8.8 sbolt | 4 | |
| 23 | operating instruction manual | 1 | |
| 24 | certificate of approval | 1 | |
| 25 | warranty card | 1 | |
| abrasive paper | 50 PCS | free |
M-600 Valve Grinder Fixed Grinding Discs Packing list
| Item | Name | Quantity | Note |
| 1 | Size 1 fixed grinding disc | 1 | Φ220 |
| 2 | Sizee 2 fixed grinding disc | 1 | Φ240 |
| 3 | Size 3 fixed grinding disc | 1 | Φ300 |
| 4 | 尺寸 4 固定磨盘 | 1 | Φ350 |
| 5 | GB70-85 M8×18） | 2 | |
| 6 | GB70-85 M6×12 | 12 |
