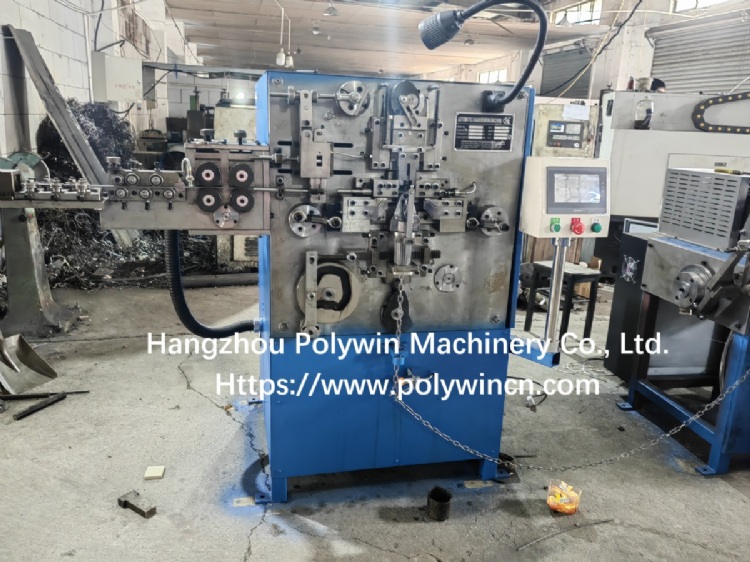

G30 G43 Automatic Chain Bending Machine
Model: LB-01
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
G30 G43 Automatic Chain Bending Machine for making low grade chains, such as snow chain.
We updated this machine by using new structure, using servo motor, much easier and friendly operation.
Specifications
|
G30 Automatic Chain bending machine |
|||||
|
wire size (mm) |
Φ2-4 |
Φ3-6 |
Φ5-10 |
Φ8-13 |
Φ13-20 |
|
Pitch range |
3.5 - 8 x wire dia |
3.5 - 8 x wire dia |
3.5 - 8 x wire dia |
3.5 - 8 x wire dia |
3.5 - 7 x wire dia |
|
Output |
47-70links/min. |
45-65links/min. |
32-45links/min. |
13-22links/min. |
13-22links/min. |
|
Motor power |
1.5KW |
2.1KW |
5.5KW |
11KW |
15KW |
|
Pole number of motor |
4 |
4 |
4 |
4 |
4 |
|
Overall size (m) |
2.1x0.7x1.5 |
2.2x0.75x1.6 |
2.7x0.9x1.9 |
4.6x1.5x1.9 |
5x1.58x2.6 |
|
Weight |
580 kg |
750 kg |
1780 kg |
4500 kg |
6500 kg |
