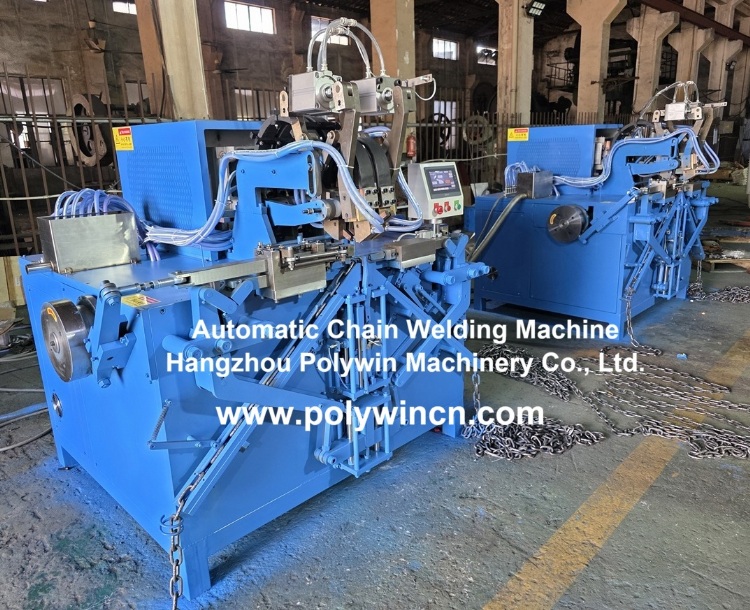

G30 G43 Automatic Chain Welding Machine
Model: LW-01
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Welding Equipment
Characteristics
The G30 G43 Automatic Chain Welding Machine produces standard-grade chains, such as for applications like snow chains.
This upgraded version incorporates structural optimizations and servo-motor automation – substantially improving production intuitiveness while reducing operational complexity.
Specifications
|
G30 Automatic Chain Welding machine |
|
|||||
|
wire size (mm) |
Φ2-4 |
Φ3-6 |
Φ5-10 |
Φ8-13 |
Φ15-20 |
|
|
Pitch range |
4 - 8 x wire dia |
3 - 8 x wire dia |
3 - 8 x wire dia |
3 - 8 x wire dia |
3 - 8 x wire dia |
|
|
Output |
45-60 links/min. |
42-56 links/min. |
33-45links/min. |
18-30 links/min. |
13-22links/min. |
|
|
Transformer power |
40KVA |
75KVA |
125KVA |
200KVA |
500KVA |
|
|
Transformer temporary load rate |
50% |
50% |
50% |
50% |
50% |
|
|
Secondary unloaded voltage |
5V |
5.94V |
7.3V |
9.2V |
10.5V |
|
|
cooling type |
water cooling |
water cooling |
water cooling |
water cooling |
water cooling |
|
|
cooling water pressure |
0.15-0.3MPa |
0.15-0.3MPa |
0.15-0.3MPa |
0.15-0.3MPa |
0.15-0.3MPa |
|
|
Motor power |
1.1KW |
1.5KW |
3KW |
5.5KW |
7.5KW |
|
|
Pole number of motor |
4 |
4 |
4 |
4 |
4 |
|
|
Overall size |
1.15x0.81x1.56 |
1.38x0.92x1.74 |
1.6x1.1x1.78 |
1.96x1.25x1.85 |
2.5x1.7x2.05 1.35x0.5x1.45 |
|
|
Weight |
0.7 t |
1.2 t |
1.8t |
2.8t |
4.5t |
|
