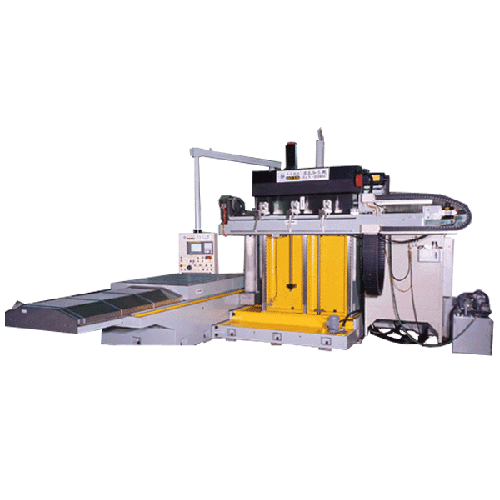

DEEP HOLE DRILLENG MACHINE
Model: 800NC
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Specifications
Drilling diameter range (mm) 2-12
Drilling depth (mm) 700
X-axis travel (mm) 900
Y-axis travel (mm) 500
Z-axis travel (mm) 800
Spindle motor (kw) 2.2/3.7
X-axis server motor (kw) αi12
Y-axis server motor (kw) αi22
Z-axis server motor (kw) αi12
High pressure pump motor (kw) 3.7x2
Lubrication pump motor (kw) 0.09
Hydraulic pump motor (kw) 3.7
X-axis rapid traverse rate (mm/min) 5000
Y-axis rapid traverse rate (mm/min) 5000
Z-axis rapid traverse rate (mm/min) 0-1000
Working table size (LxW)mm 1200x800
Working table load capacity (kg) 2500
Floor space 3000x3000
Weight (kg) 7500
