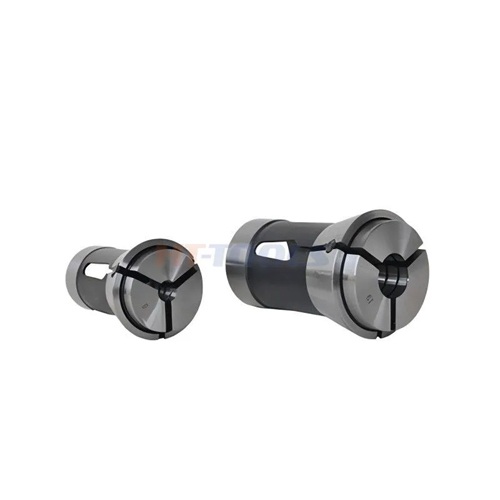

DIN6343 Clamping Collet
Model: DIN6343 Clamping Collet
Category: Machinery Parts and Components / Machinery Parts and Components / Ball Screws
Characteristics
DIN6343 Clamping Collet
Specifications
The DIN6343 Clamping Collet is a standardized, high-precision workholding component designed according to DIN 6343 German Industrial Standards, ensuring reliable performance, interchangeability, and accuracy in CNC machining, turning, and grinding operations. Known for its robust construction and exceptional concentricity, this collet provides stable clamping force, excellent repeatability, and extended tool life — making it an essential component in modern metalworking and manufacturing industries.
|
DIN 6343 CLAMMPING COLLET |
|||||||
|
Model |
D1(mm) |
D2(mm) |
L(mm) |
Hole size(mm) |
Wt(kg) |
||
|
round |
square |
hex |
|||||
|
DIN6343-F17.5 |
17.5 |
22 |
51 |
13 |
8 |
10 |
0.05 |
|
DIN6343-F22 |
22 |
30 |
55 |
16 |
11 |
13 |
0.09 |
|
DIN6343-F27 |
27 |
38 |
72.7 |
22 |
15 |
19 |
0.10 |
|
DIN6343-F28 |
28 |
38 |
70 |
22 |
15 |
19 |
0.12 |
|
DIN6343-F32 |
32 |
45 |
75 |
26 |
18 |
22 |
0.27 |
|
DIN6343-F35 |
35 |
48 |
80 |
30 |
21 |
26 |
0.35 |
|
DIN6343-F42 |
42 |
55 |
94 |
36 |
25 |
30 |
0.49 |
|
DIN6343-F48 |
48 |
60 |
94 |
42 |
29 |
36 |
0.57 |
|
DIN6343-F56 |
56 |
68 |
94 |
50 |
35 |
42 |
0.65 |
|
DIN6343-F66 |
66 |
84 |
110 |
60 |
42 |
52 |
1.16 |
Applications
CNC turning centers – For accurate and stable clamping of shafts, rods, and cylindrical workpieces.
Milling and drilling machines – To hold components securely during high-speed or precision machining.
Grinding applications – For fine finishing and surface polishing where precise concentricity is essential.
Automatic lathes and bar feeders – Ideal for mass production and continuous machining operations.
Measurement and testing setups – Used in metrology and quality control systems for component holding.
Whether you are a distributor, OEM manufacturer, or machining workshop, we are committed to being your long-term partner in CNC Machine Tool Parts.
